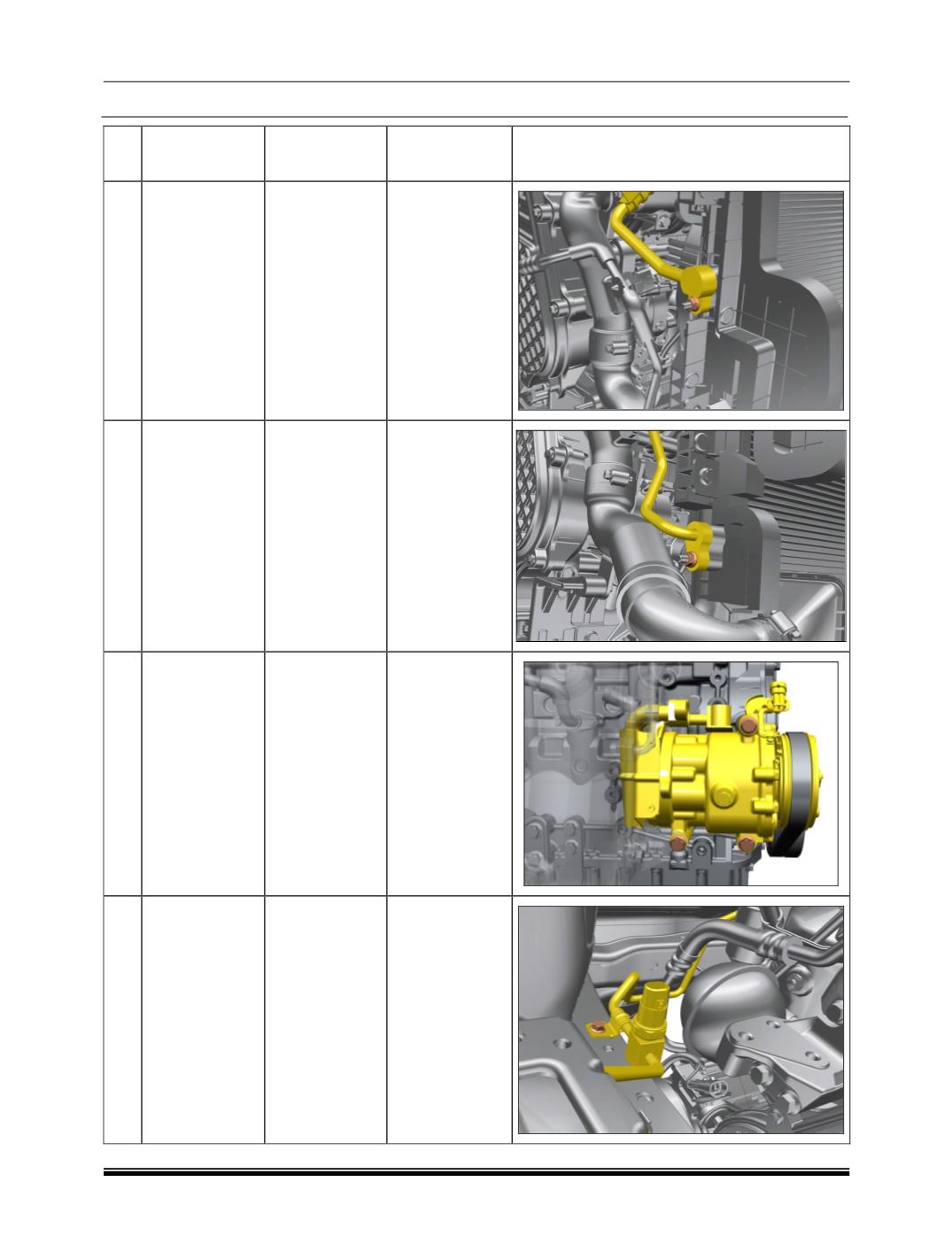

FATC

9

SR

NO.

DESCRIPTION

FASTENER

TIGHTENING

TORQUE (N-m)

LOCATION

4A

Refrigerant line

on condenser in-

let

Hex FL nut AM6

TS17430-8-

SS8451S2

6 – 8

4B

Refrigerant line

on

condenser

outlet

Hex FL nut AM6

TS17430-8-

SS8451S2

6 – 8

5

Compressor

mounting

M8 X 95

30

6A

TUBE

ASSY,LIQUID

LINE

M6 X 16

6 - 8
