SUSPENSION
6

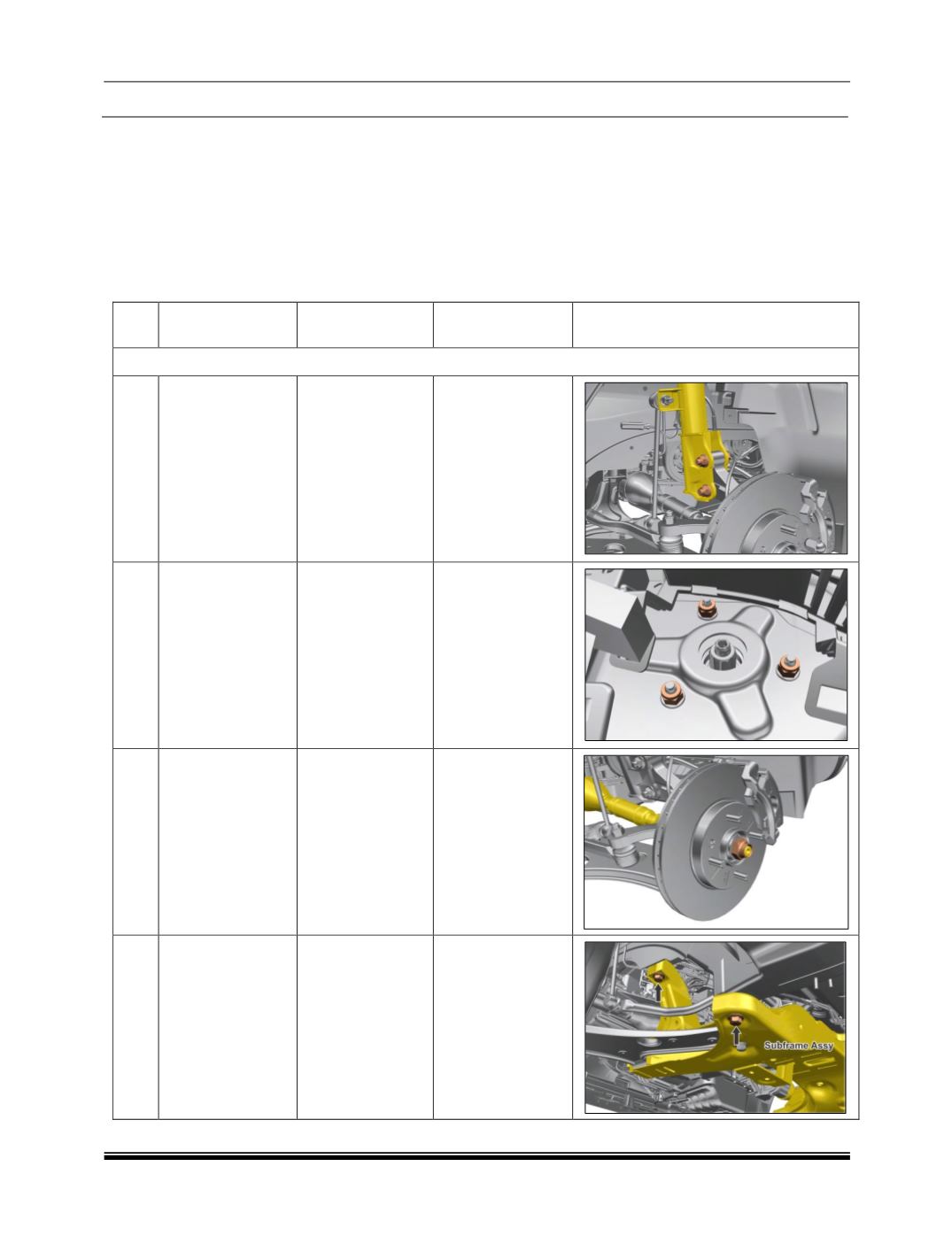

3. TIGHTENING TORQUES
NOTE:
Unless otherwise specified, no oil/lubricant/thread locker allowed on fastener, fastener bearing
surface or surface where the fastener will sit while assembly. All self-locking type fasteners not to
be re-used once joint is dismantled.
All fasteners to be paint marked after torque tightening is applied.
*
MARKED BOLTS TO BE TIGHTEN IN PRE-LOADING CONDITIONS
.
SR.
NO.
DESCRIPTION
FASTNER TYPE
TORQUE
VALUE (Kg-m)
LOCATION
FRONT SUSPENSION
1.
FRONT STRUT
MOUNTING ON
KNUCKLE
M12X1.25
14
2.
Strut top
mounting
NYLOC NUT M8
2.3
3
Driveshaft lock
nut
LOCK NUT
24.5 ± 1.5
4
Sub frame
mounting bolts(at
4 corners)
M14x1.25
19
