428 / 1003
TRANSAXLE TA6300
14
7. SECTION VIEWS

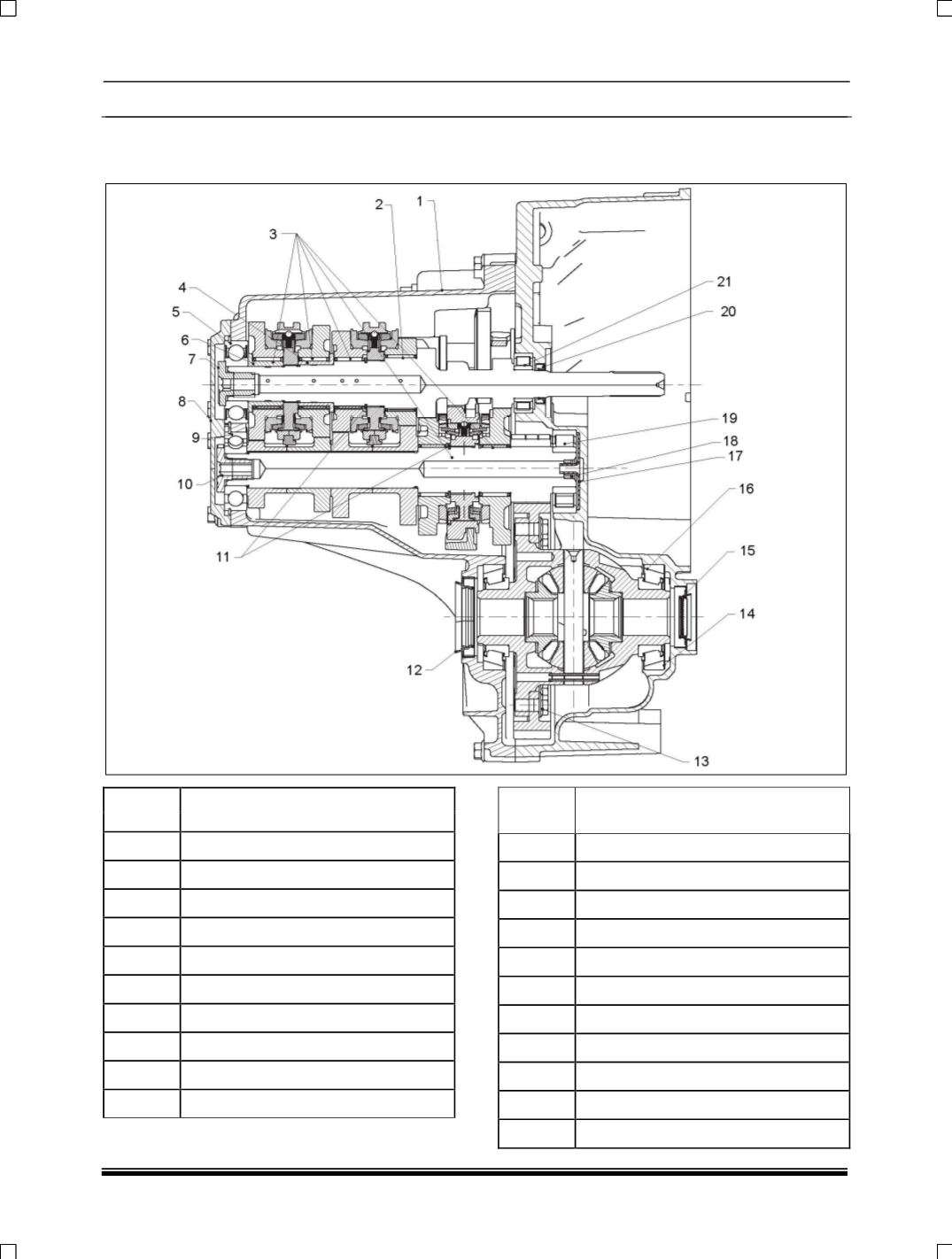

A. CUT SECTION OF TRANSAXLE TA6300:
SR. NO.
DESCRIPTION
1
HOUSING REAR HALF
2
NEEDLE CAGE
3
NEEDLE CAGE
4
BUSH 5TH GEAR I/P SHAFT
5
DEEP GROOVE BALL BEARING
6
BUSH 6TH GEAR I/P SHAFT
7
CLAMPING SCREW
8
COVER REAR HALF
9
DEEP GROOVE BALL BEARING
10
CLAMPING SCREW
SR. NO.
DESCRIPTION
11
SNAP RING
12
OIL SEAL;DRIVE SHAFT-
13
COLLARED SCREW
14
SHIM DIFFERENTIAL BEARING
15
OIL SEAL;DRIVE SHAFT
16
TAPER ROLLER BEARING.
17
OIL FEEDER;LAYSHAFT
18
OIL RING
19
CYL.ROLLER BRG
20
OIL SEAL INPUT SHAFT
21
CYL.ROLLER BRG
