1.5L REVOTORQ BS VI ENGINE
90

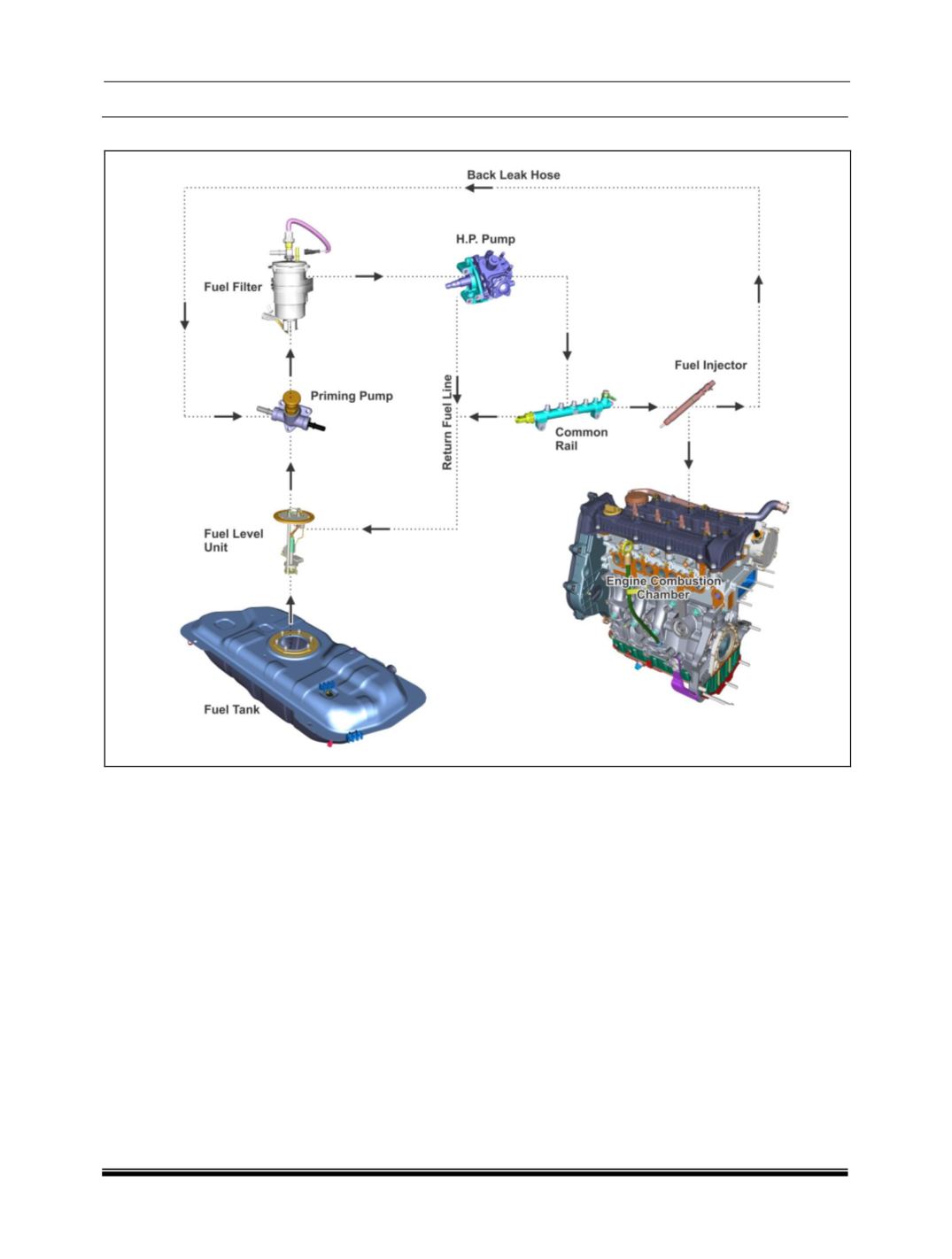

Fuel System Schematic Layout
The Fuel system consists of the following
components.
1. Injector.
2. High Pressure Pump.
3. Common Rail.
4. Main Fuel Filter.
5. Priming pump.
6. Fuel tank with tank unit.
