1.2L REVOTRON ENGINE
177
SENSOR STANDALONE DIAGNOSIS
Connector details:
Injector 1
1. ECU pin M2H2 : signal
2. supply voltage - 12V
Injector 2
1. ECU pin M2G3 : signal
2. supply voltage - 12V
Injector 3
1. ECU pin M2G2 : signal
2. supply voltage - 12V
Use multimeter to check coil resistance which
should be 12.25ohms ± 0.5ohms

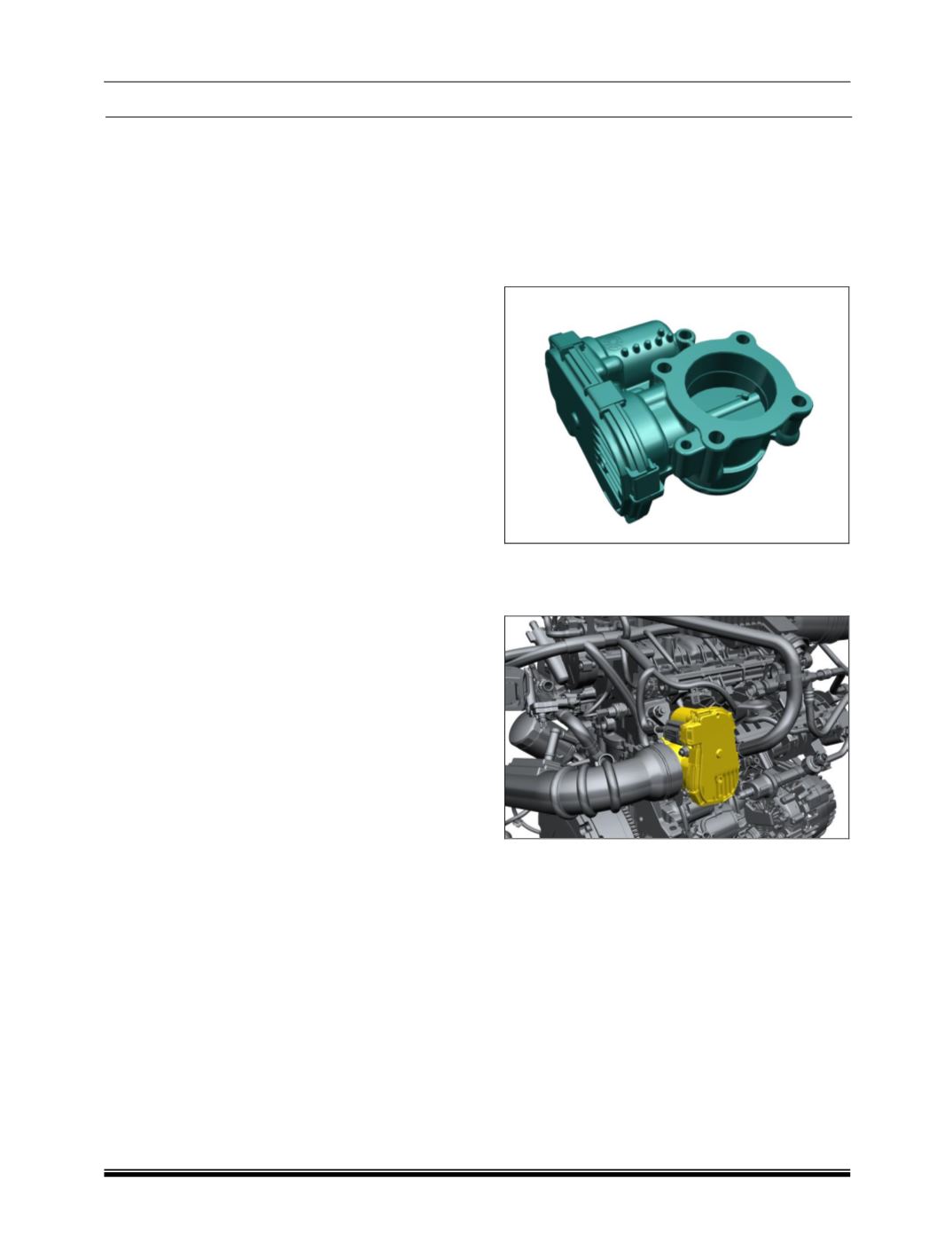

V. ELECTRONIC
THROTTLE BODY
COMPONENT DETAILS
A DC motor drive is used to move the throttle
valve over the complete movement range. The
DC motor is directly controlled by the ECU of the
Diesel engine. Throttle Valve H-bridge driver of
EMS ECU provides bidirectional control with
active recirculation and over current detection.
COMPONENT LOCATION
The throttle position sensor is mounted on intake
manifold upstream side.
PRELIMINARY CHECKS
1. Please check whether dust/mud/any particle is
blocking throttle valve.
2. Please check whether the throttle valve is
stuck closed.
3. Please check for any throttle body related
faults and rectify those faults by following their
rectification procedure.
