ELECTRICAL

143

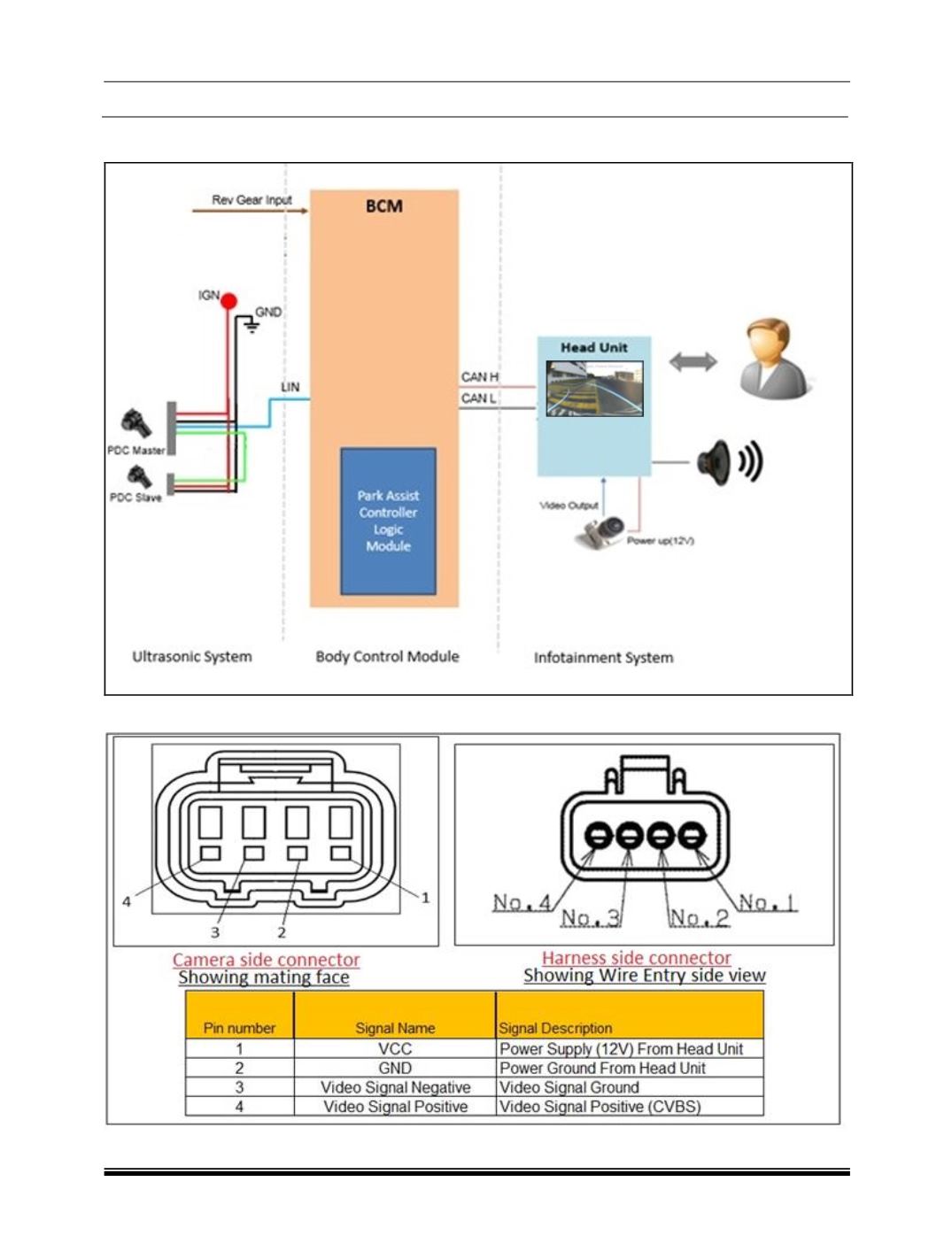

A. "Rear Park Assist System Architecture Without Controller (Through BCM)

B. Connector Details of Rear View Camera
