ELECTRICAL
101

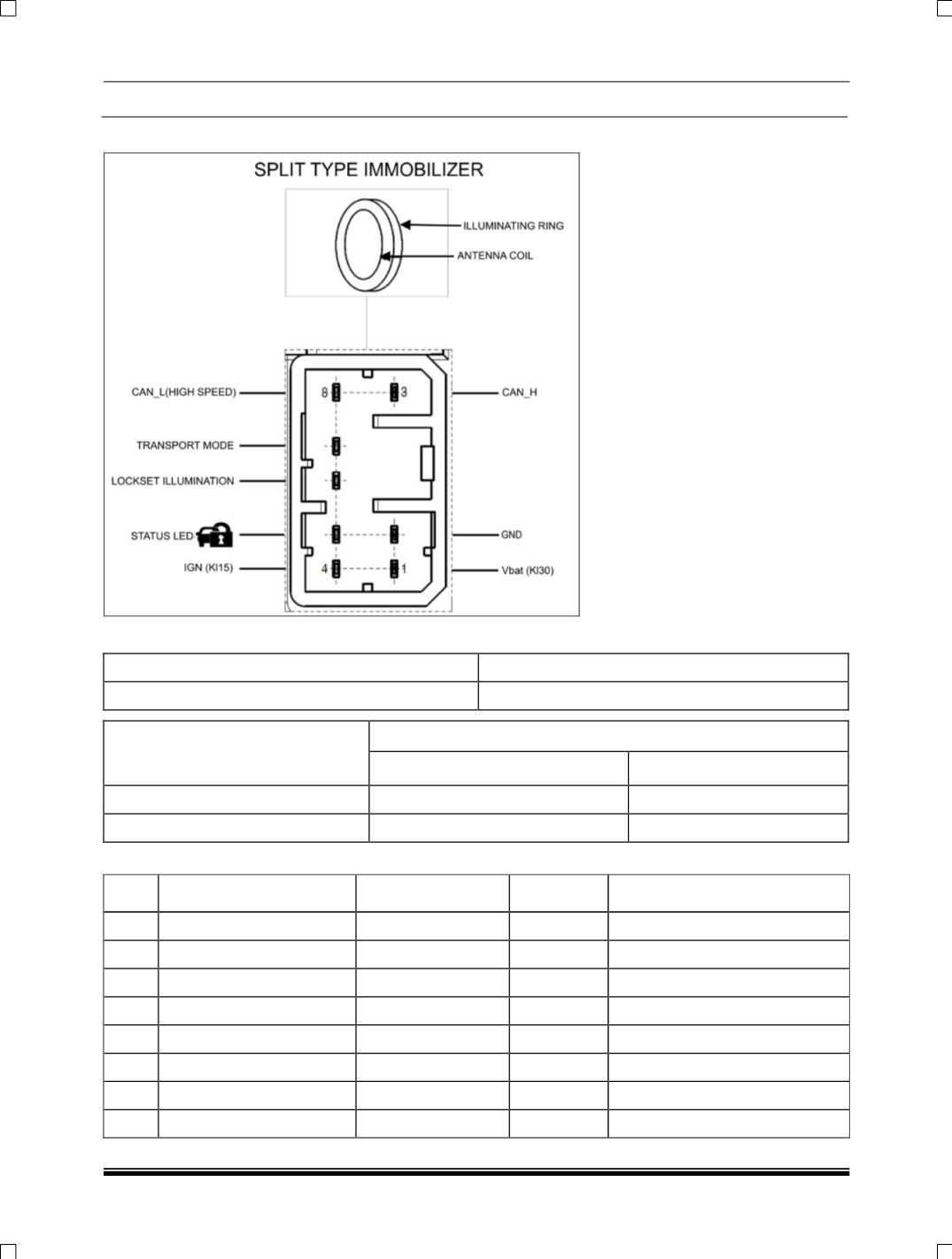

CONNECTION DIAGRAM:
CONNECTION DETAILS OF PIN:
IMMOBILIZER CONNECTOR
INSTRUMENT CLUSTERCONNECTOR
Status bulb Pin -5
Pin 20
IMMOBILIZER CONNECTOR
EMS VEHICLE CONNECTOR PIN NO.
DIESEL
PETROL
CAN_H Pin 3
Pin 19
Pin 19
CAN_L Pin 8
Pin18
Pin18
IMMOBILIZER CONNECTOR & PIN OUT DETAILS
PIN
SIGNAL NAME
INPUT / OUPUT
LEVEL
CLASSIFICATION
1
Vbat (KL30)
ICU PWR
POWER
150 mA
2
GND
ICU PWR
POWER
150 mA
3
CAN - H (HIGH-SPEED)
COMMUNICATION
--
--
4
IGN (KL15)
INPUT
HIGH SIDE HIGH ASSERTION, 2-20 mA
5
STATUS LED
OUTPUT
LOW SIDE
LOW ASSERTION, 2-20 mA
6
LOCKSET ILLUMINATION INPUT
HIGH SIDE HIGH ASSERTION, 2-20 mA
7
TRANSPORT MODE
INPUT
HIGH SIDE LOW ASSERTION, 2-20 mA
8
CAN -L (HIGH-SPEED)
COMMUNICATION
--
--
