ELECTRICAL
42
REMOVAL AND REFITMENT
:
NOTE: -
For wiper and washer system removal and re-fitment procedure, refer body section.
•
MOTOR SPECIFICATION
ITEM
REAR WIPER
FRONT WIPER
RATED VOLTAGE
12V
12V
TEST VOLTAGE
13.5±0.2V
13.5
OPERATING VOLTAGE RANGE
10-15V
09-16V
OPERATING TEMP RANGE
-40ºC TO +80ºC
-40ºC TO +80ºC
INSULATION RESISTANCE
1M.ohm MIN
2 Nm LOAD
SPEED
20 – 25 rpm
40 – 75 rpm
CURRENT
4 A maximum
4 – 5 A maximum
NOISE
50 db (A) maximum
55 – 60 db (A) maximum
•

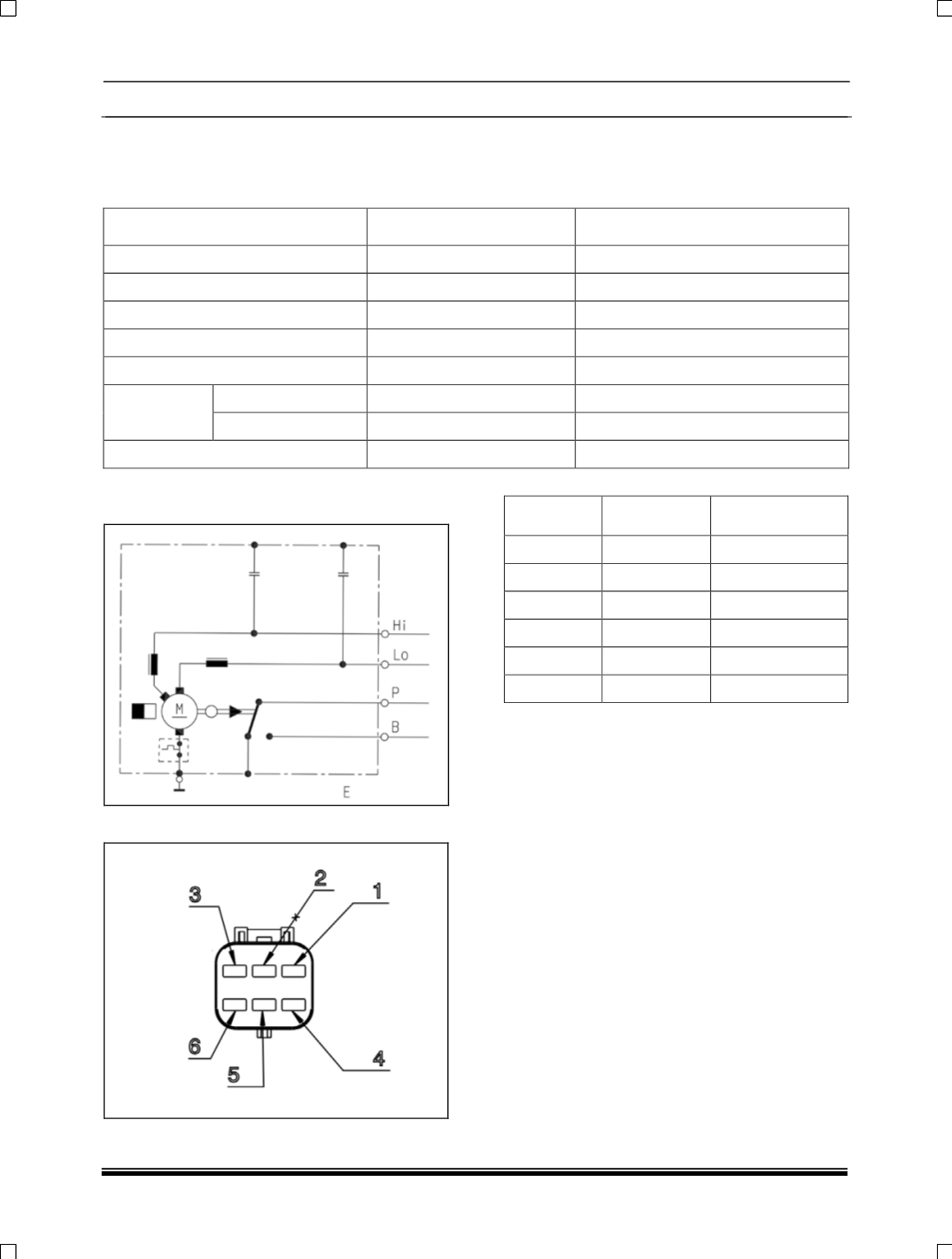

CIRCUIT DIAGRAM OF WIPER MOTOR
FRONT WIPER
PINOUT DETAIL:
PIN
SYMBOL
FUNCTION
1
-
Blank
2
Hi
High
3
Lo
Low
4
B
Battery
5
P
Parking
6
E
Earth
