BRAKES
38

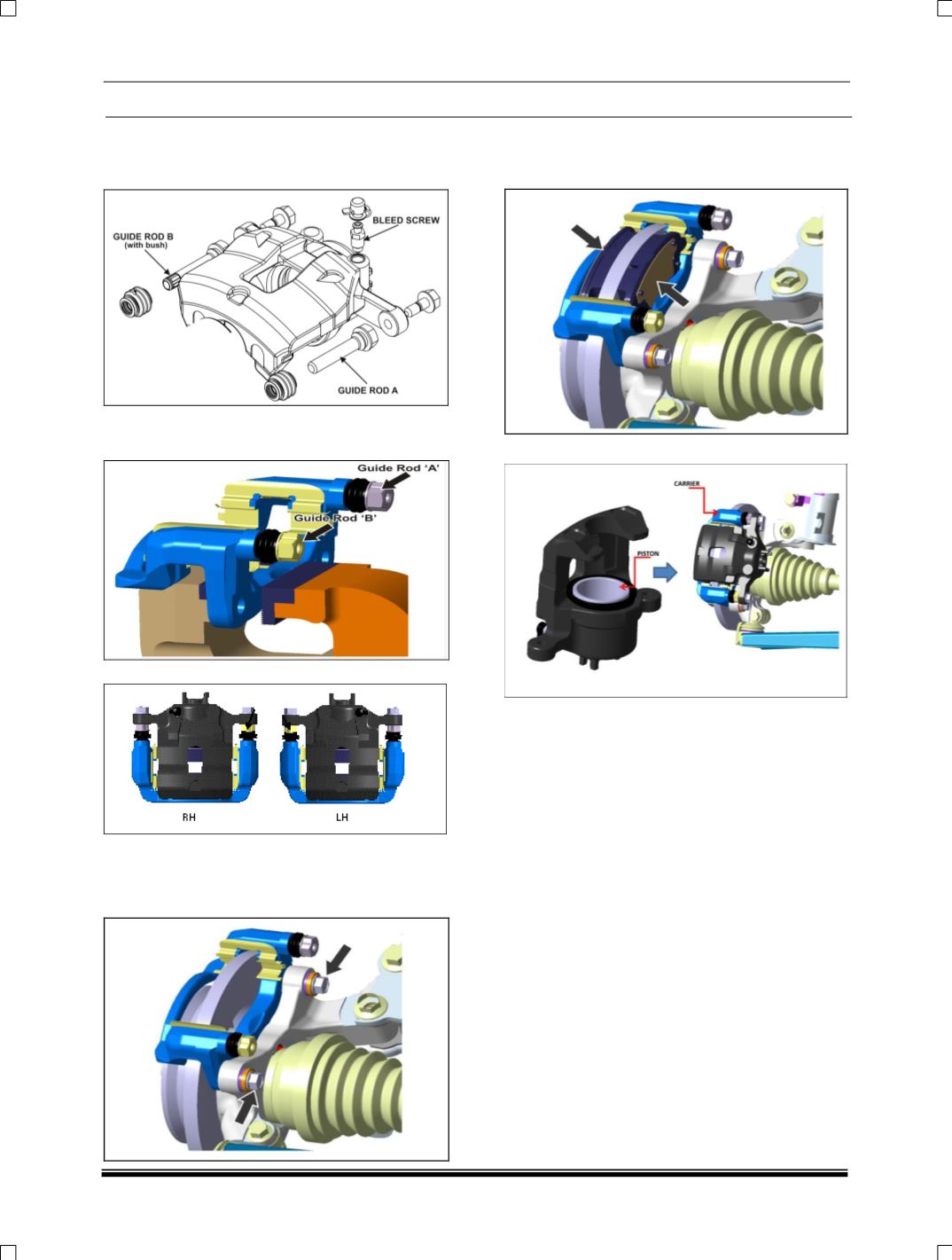

Assembly guide rod ‘B’ (with bush) (always
opposite to bleed screw side both LH & RH).
Brass colour.
3. Assemble boot guide rods, guide rod A and
guide rod B.
NOTE-
4. Assemble the new carrier assembly to the
knuckle. Apply recommended torque. Ensure
correct fitment.
5. Carefully assemble the inner and outer pad
assemblies respectively and ensure the free to
and fro movements of pads.
6. Re-install the caliper in the carrier.
NOTE:
Re-install the caliper in the carrier, screw the
banjo bolt (with copper gasket) to the
recommended torque, then release the hose
clamp, do bleeding operation and check for
correct function of the caliper parts, ensure no
drag and frictional noise.
7. Assemble the wheel again.
