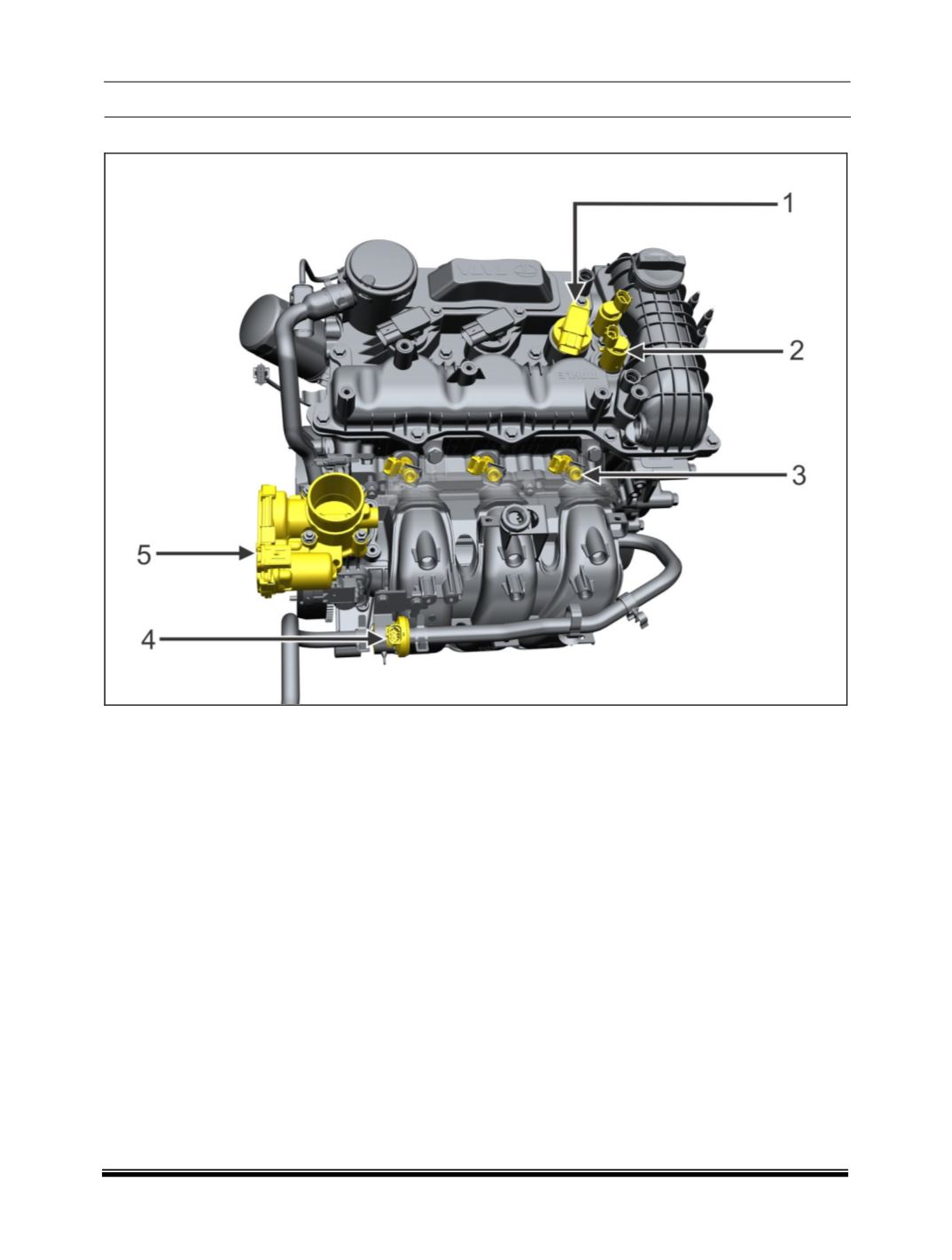

1.2L REVOTRON ENGINE

160

E. ACTUATORS :

1 Ignition Coil

4 Purge Control Valve

2 Solenoid Valve

5 Electronic Throttle Body

3 Fuel Injectors
