1.2L REVOTRON ENGINE

141

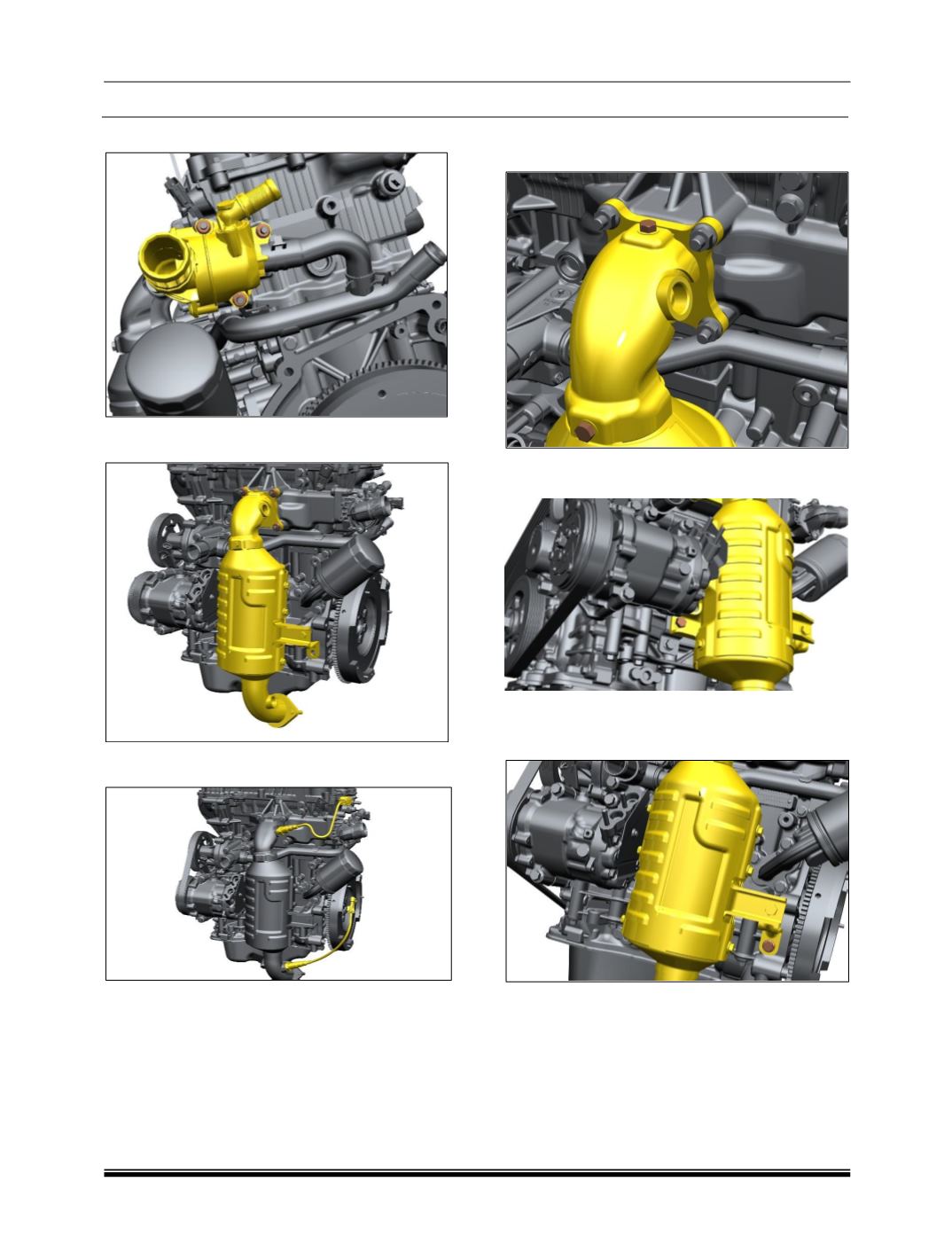

4. Refit the Thermostat

5. Refit the Closed Coupled Catalytic Convertor

(CCC) and Gasket.

6. Reconnect the Lambda Sensor Upper and

Lower to CCC.

7. Refit the Heat Shield by tightening the two

bolts.

8. Refit the CCC left side support bracket near

Compressor.

9. Refit the Right side Support Bracket for the

Closed Coupled Catalytic Convertor (CCC)

near oil filter.
