FATC
10

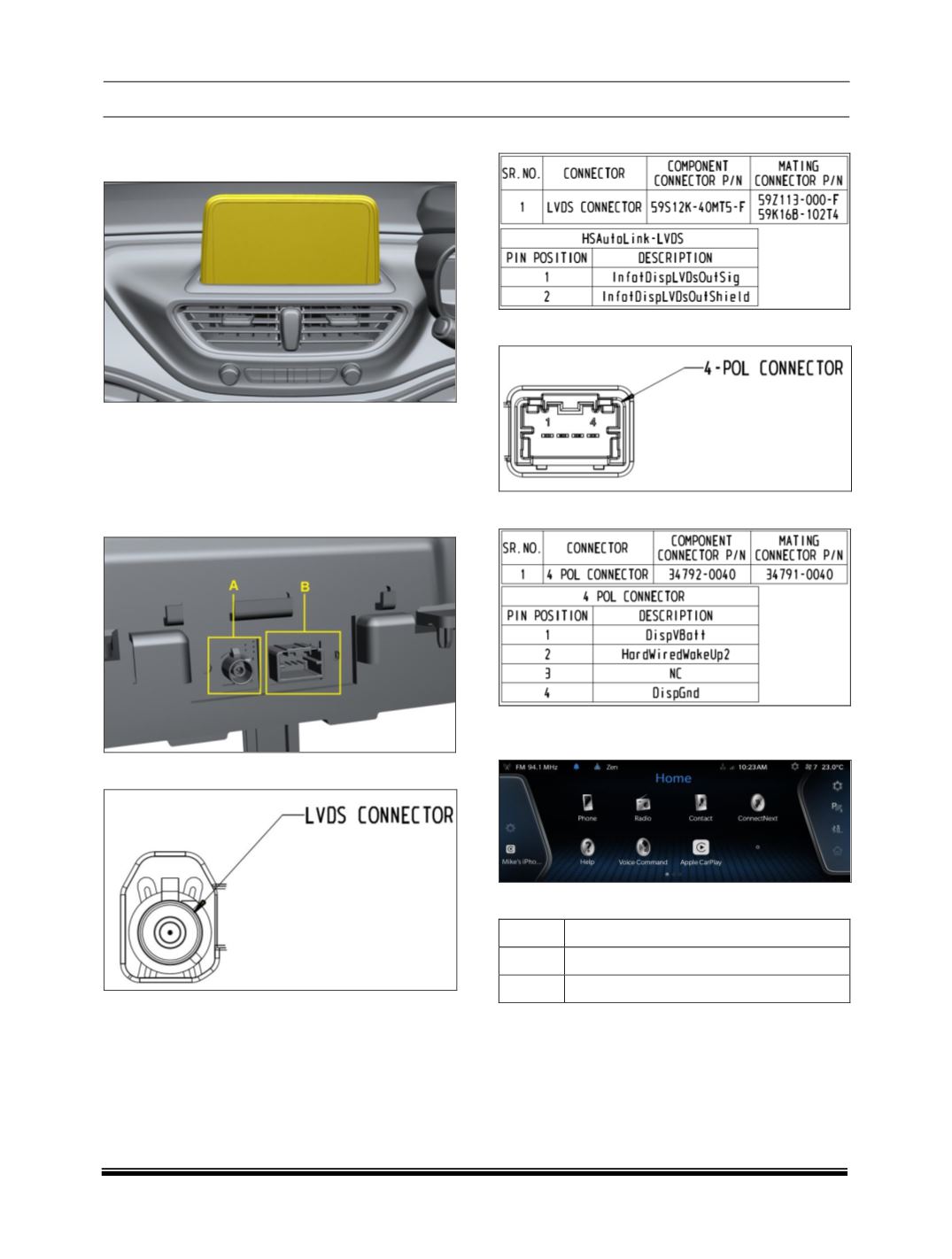

6. HMI CLIMATE CONTRL DISPLAY
It is located on the dashboard.
HMI CLIMATE CONTRL STATUS DISPLAY
The Climate Control feature is vehicle dependent.
The infotainment system displays the following cli-
mate control related information in its display screen
bottom bar.
Connector Details
A. LVDS CONNECTOR
CONNECTOR DETAILS
B. 4-POL CONNECTOR
CONNECTOR DETAILS
Display Screen with Climate Control Details in
Right side
Display Screen Climate Information
1.
AC ON/OFF display and control
2.
Blower speed display and control
3.
Temperature display and control
