BODY
24

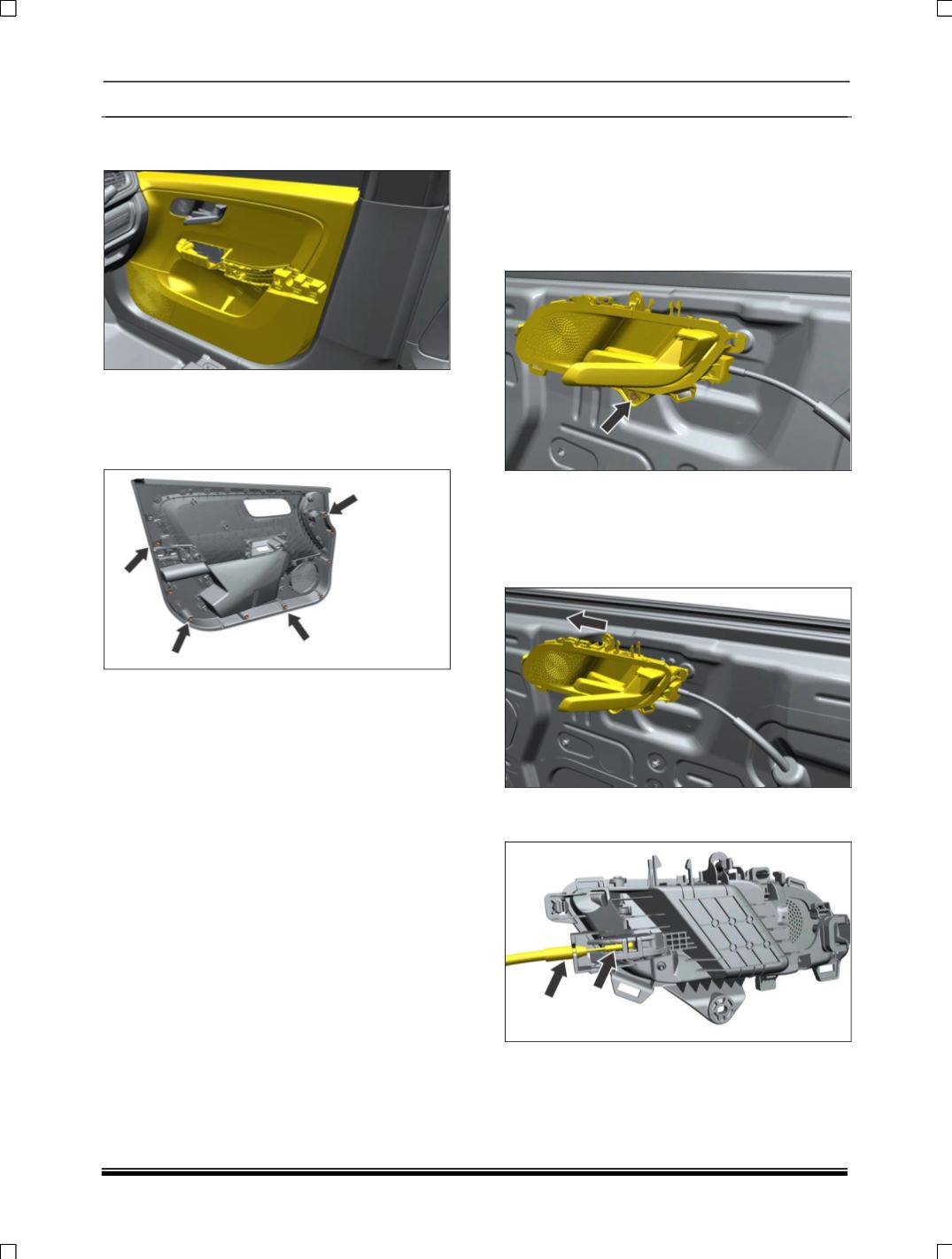

6. Insert plastic wedge pin and remove the door
trim.
NOTE
While lifting door trim, care should be taken such
that tree clips don’t get damage. Below image
gives the location of tree clips on door trim.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
“For Side door Rattling Noise, Door Latch and
striker setting need to be done & maintain 1 mm
under flush condition.”
2.12 DOOR INNER LOCK HANDLE
REMOVAL
1. Remove the door trim.
(For procedure refer
door trim removal process.)
2. Loosen and remove the mounting screw of
inner handle.
3. Remove one snap and two hooks located
behind the front door inner handle lever.
4. Slide the Housing in horizontal / X direction
towards vehicle front and remove the lever
with Housing assembly from Door Inner panel.
5. Disconnect the cable from inner lock handle
connecting inner handle to latch assembly.
6. Remove door inner lock handle.
FITMENT
For fitment follow the reverse procedure of
removal.
