BRAKES
42
14.4. REAR BRAKE ASSEMBLY :

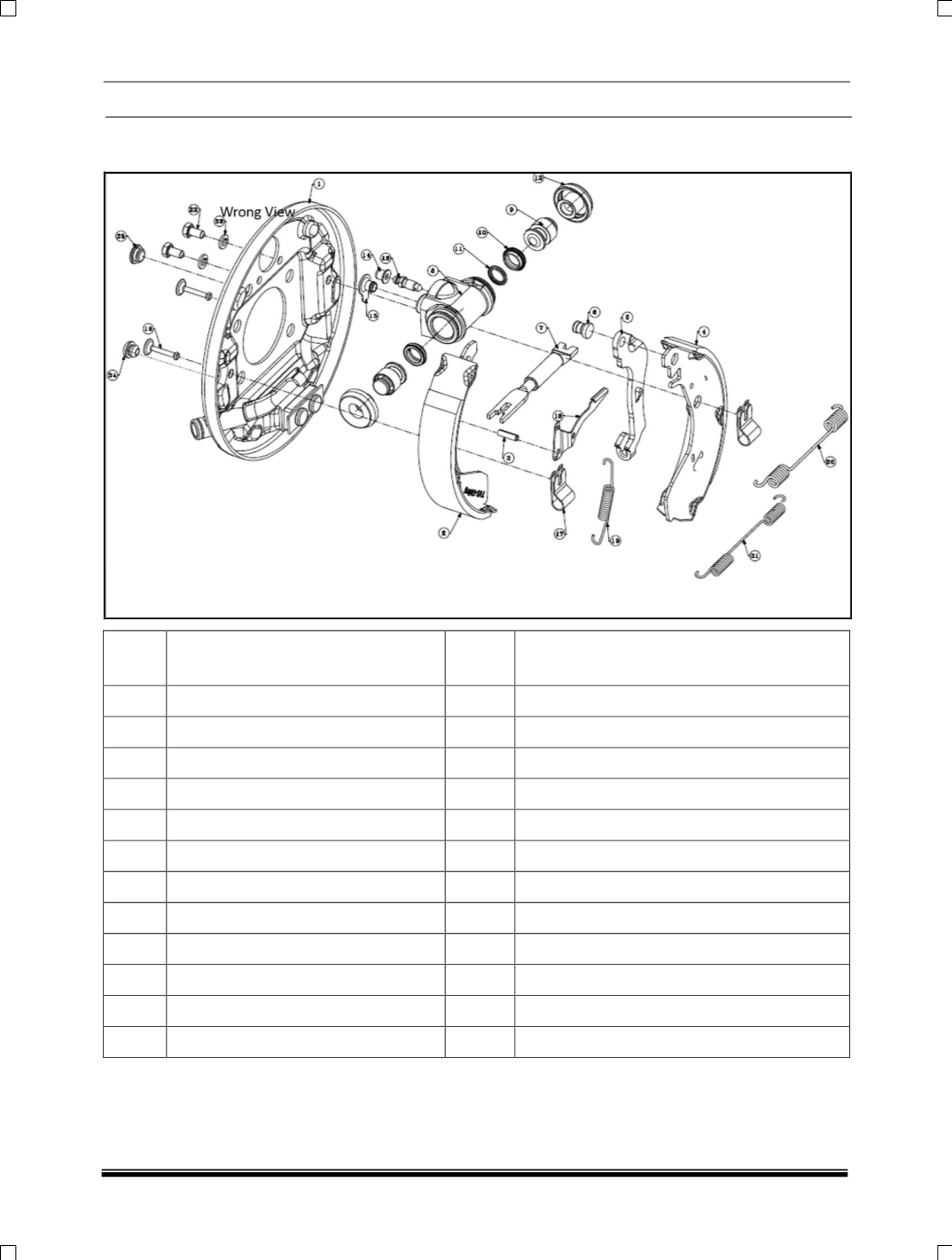

Exploded View of rear Brake Assembly
ITEM
NO
DESCRIPTION
ITEM
NO
DESCRIPTION
01
BACKPLATE ASSEMBLY
13
PIN, SHOE HOLD DOWN
02
UNIT SHOE ASSEMBLY- LEADING
14
PLATE, SPRING
03
UNIT SHOE ASSEMBLY- TRAILING
15
LEVER, PAWL
04
AUTO ADJUSTER ASSEMBLY
16
SPRING, ADJUSTER
05
W / CYCLE BODY
17
SPRING, SHOE RETURN- W / CYL END
06
PLUNGER ASSEMBLY
18
SPRING, SHOE RETURN- ABUTMENT END
07
SEAL
19
SCREW, W / CYL MOUNTING
08
SPRING
20
GROMMET, LINING INSPECTION
09
DUST COVER
21
GROMMET, COLLAPSING HOLE
10
BLEED SCREW
22
PIN
11
CAP, BLEED SCREW
23
PIN
12
PLUG, PROTECTIVE
