DRIVESHAFT - DIESEL
17
15. DO’S AND DON’T’S FOR DRIVE SHAFT
DO’S
1. While inserting Driveshaft into Transaxle, Do ensure lock ring end sharp edge not touches to oil seal
leap.
2. Do ensure specific tightening torque as per drawing for intermediate shaft bracket.
3. Do ensure proper alignment of driveshaft in Transaxle
4. Do ensure grease availability on oil seal lip
5. Do ensure no cut oil seal lip at the time driveshaft rework, or else replace with new one
6. Do ensure axially aligned fitment of driveshaft in TA to avoid further damage
DONT’S
1. Don’t Fit oil seal in misaligned condition, use dolly

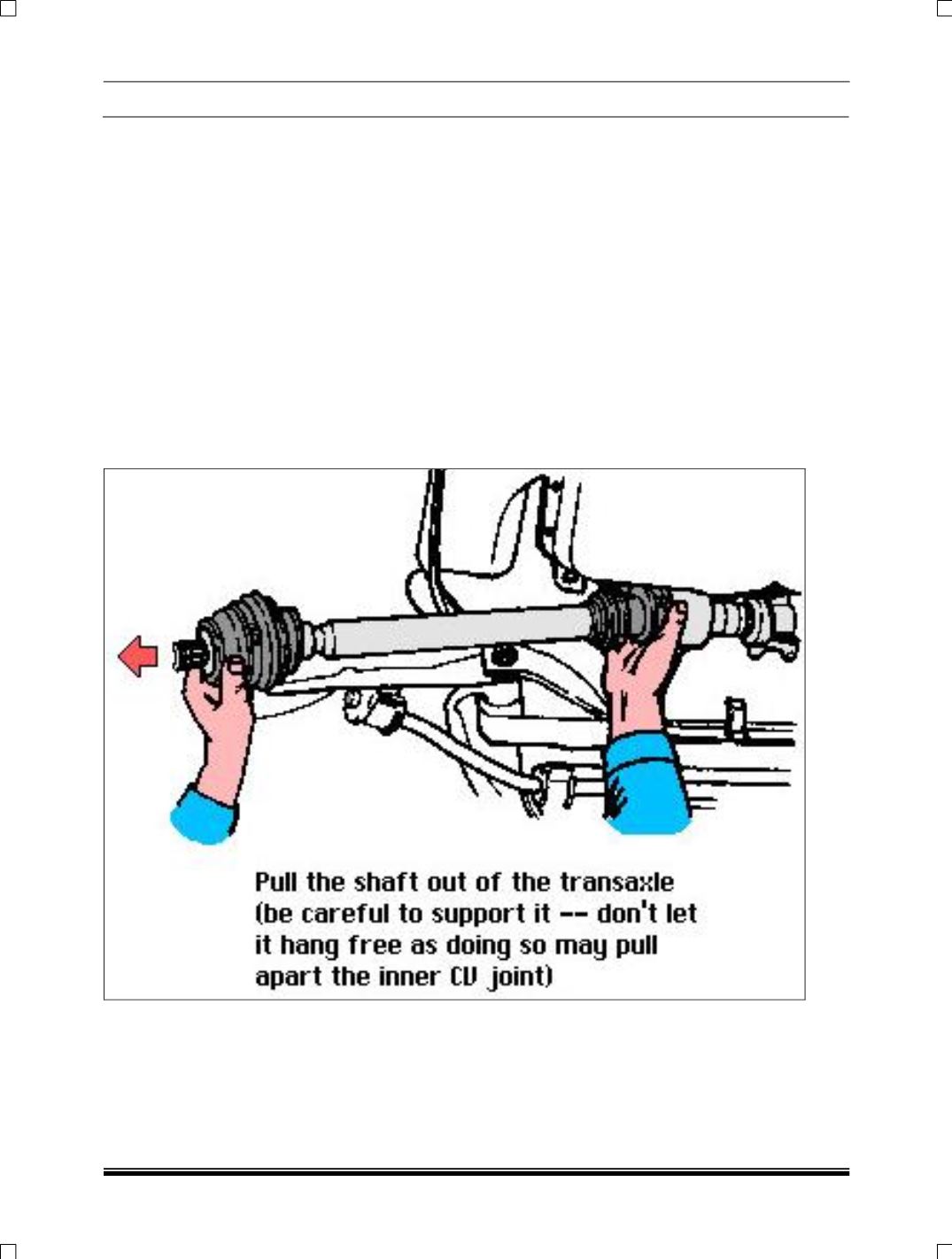

2. While removing driveshaft avoid damage to boot and oil seal by any tool
3. Don’t overtight fasteners.
