TRANSAXLE - TA5260
19

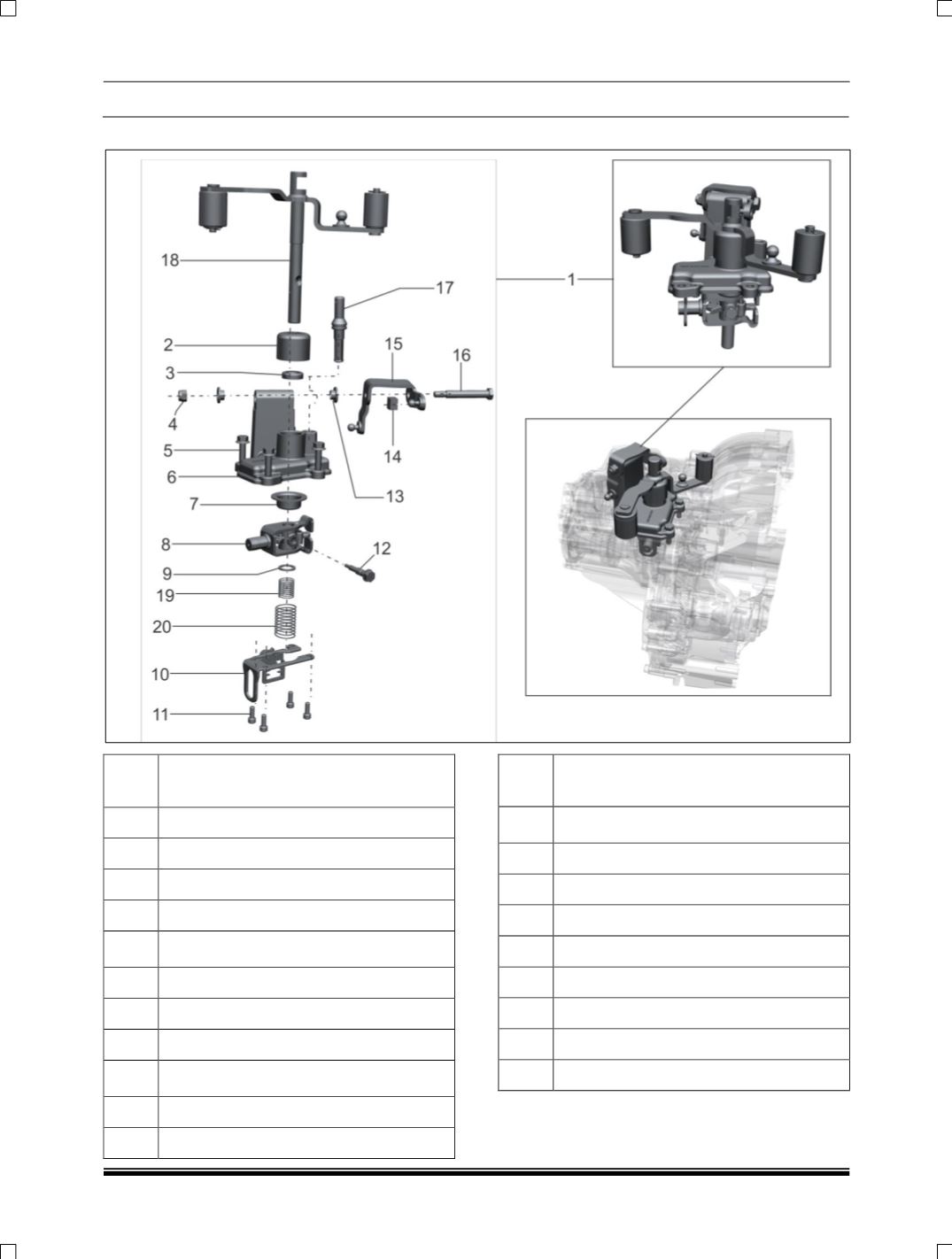

EXPLODED VIEW OF TOP COVER ASSEMBLY
SR.
NO.
DESCRIPTION
1
COVER ASSY;TOP
2
DUST CAP
3
OIL SEAL (SEL SHIFT SHAFT)
4
NYLOC NUT M8 IS7002-8-SS8451S2-Y
5
HEX FL BOLT M8X25 TS17070 8.8
SS8451S2-Y
6
TOP COVER
7
CUP
8
INTERLOCK & SHIFT FINGER ASSY
9
SPACER (SELECTOR SHIFTER
SHAFT)
10
BRACKET
11
CAP SCREW M6X50-IS2269-12.9
SR.
NO.
DESCRIPTION
12
CROSS PIN (SHIFTER / SELECT
FINGER)
13
COLLAR BUSH
14
BUSH BELL CRANK LEVER
15
ASSY. BELL CRANK LEVER
16
PIN (SELECTION)
17
BREATHER
18
ASSY. SELECTOR SHIFTER SHAFT
19
SPRING 1
ST
/ 2
ND
SELECTION
20
SPRING 5
TH
/ REV SELECTION
