ELECTRICAL

199

8.27.2 ENGINE FUSE AND RELAY BOX:

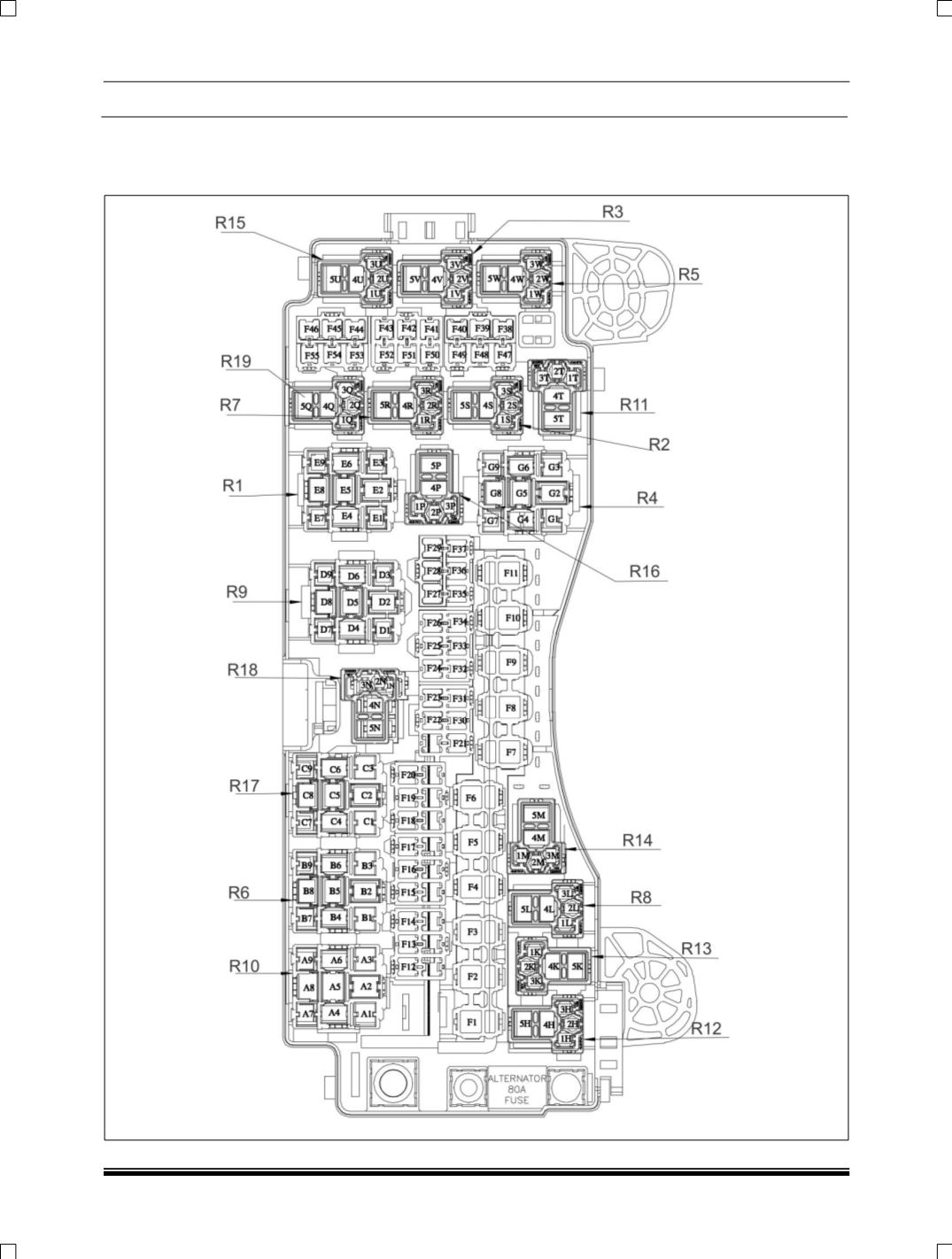

Main distribution unit is fitted in engine compartment. It consists of fuses and relays. For details refer top

view of MDU.
