907 / 1081
BODY
16

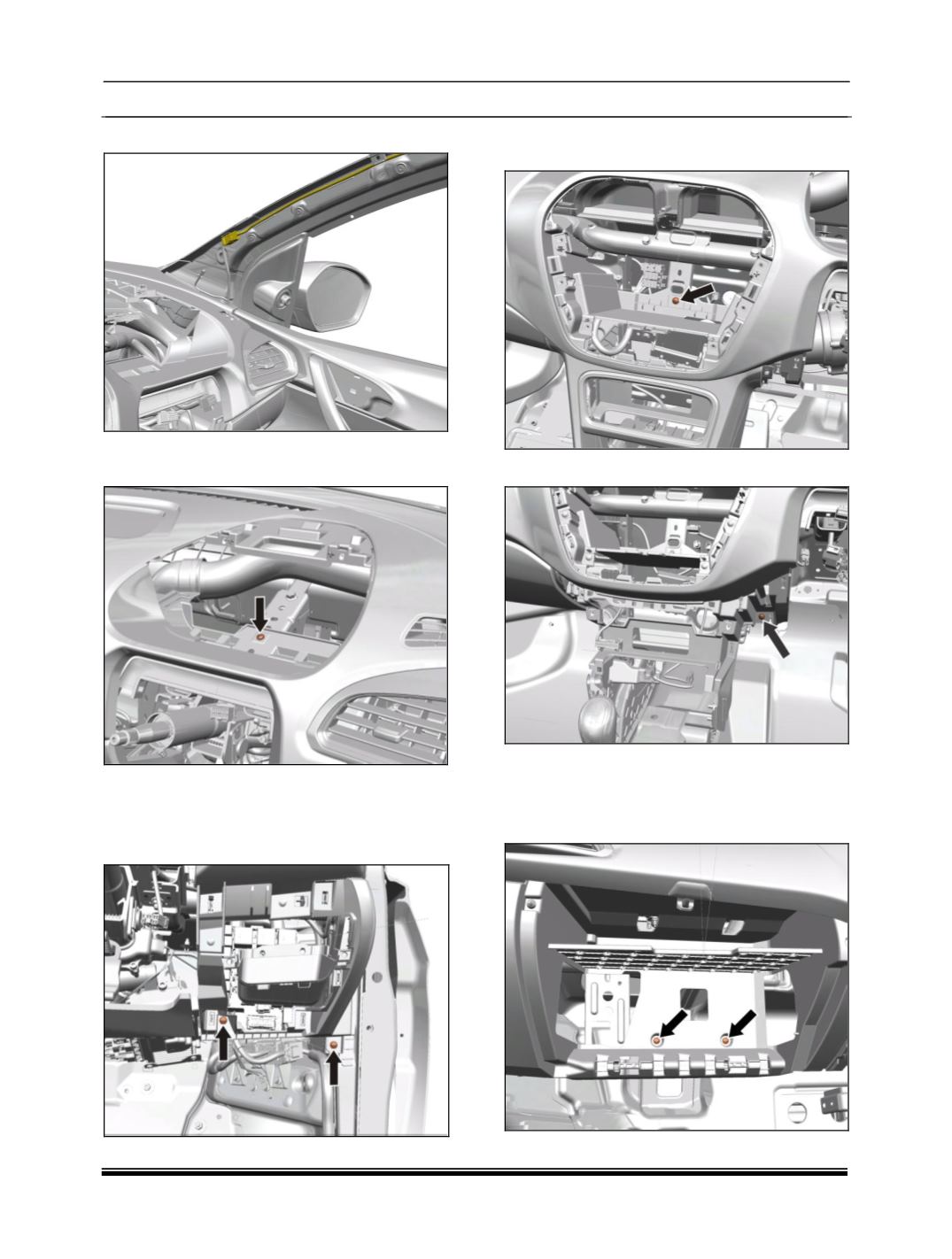

16.Remove all visible electrical connections.
17.Remove Dashboard mounting screw below
cluster location.
18.Remove A pillar Lower trim.
(For procedure
refer A pillar trim removal process).
19.Remove two mounting screw at front of fuse
box.
20.Remove one screw located below music
system.
21.Remove one screw as shown in figure.
22.Remove glove box
(For procedure refer glove
box removal process).
23.Remove two mounting screws at glove box
location.
