STEERING

11

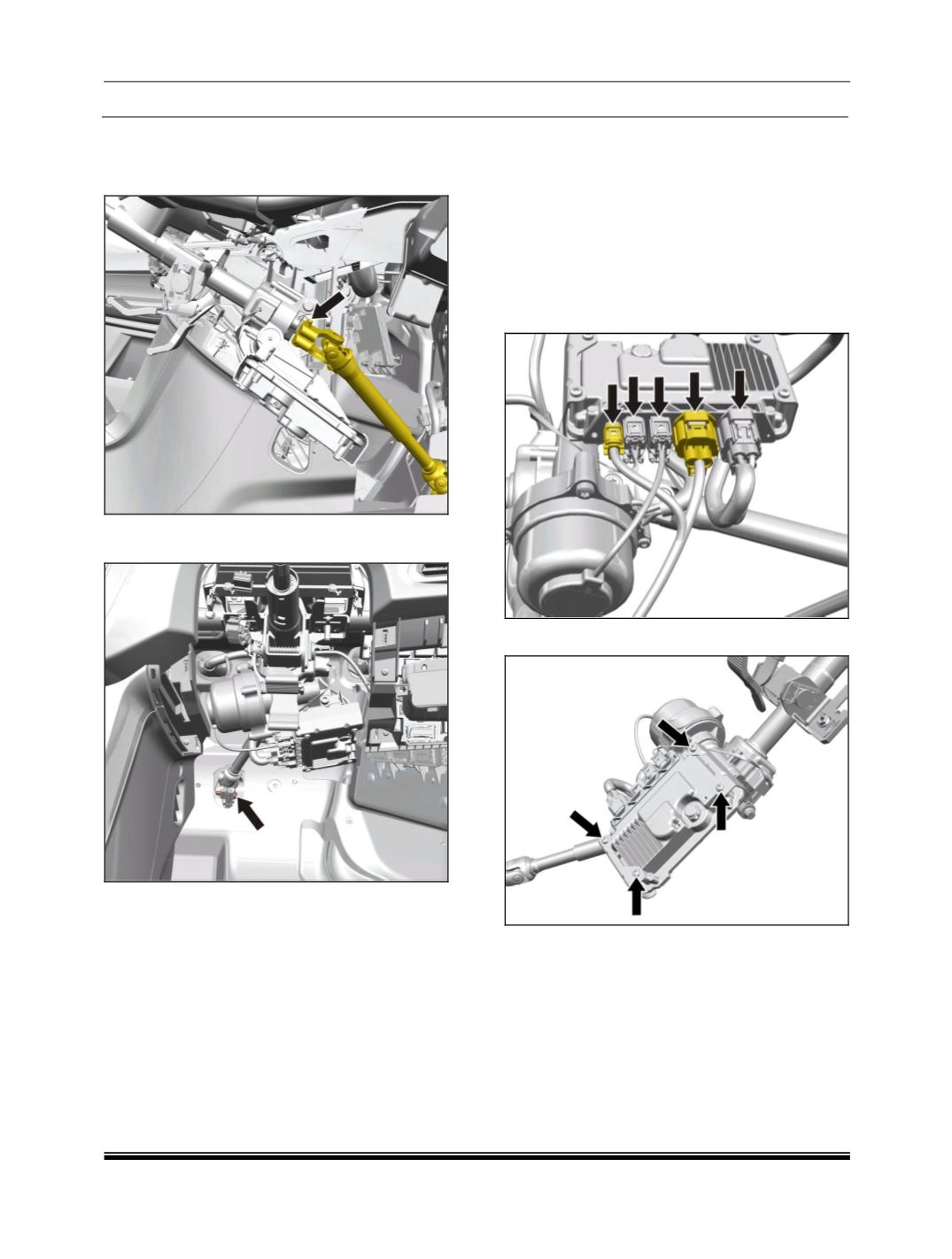

2.3.3. INTERMEDIATE SHAFT REMOVAL

1. Loosen the universal joint bolt between

steering column & intermediate shaft.

2. Remove the universal joint bolt between

intermediate shaft and rack & pinion assembly.

3. Disengage the intermediate shaft from rack &

pinion assembly and take out the intermediate

shaft.

REFITMENT:

For assembly follow reverse procedure of

removal.

2.3.4. ECU REMOVAL

NOTE:

Refer flow chart in section 7.6 Electric Power

Assisted Steering (EPAS) ECU replacement

and software update procedure in field

1. Disconnect battery. (Refer battery removal

procedure/Body Electrical group)

2. Disconnect the electrical connectors from the

ECU.

3. Remove the mounting screw of ECU.

4. Take out the ECU.
