DRIVETRAIN-TA65 Star
23

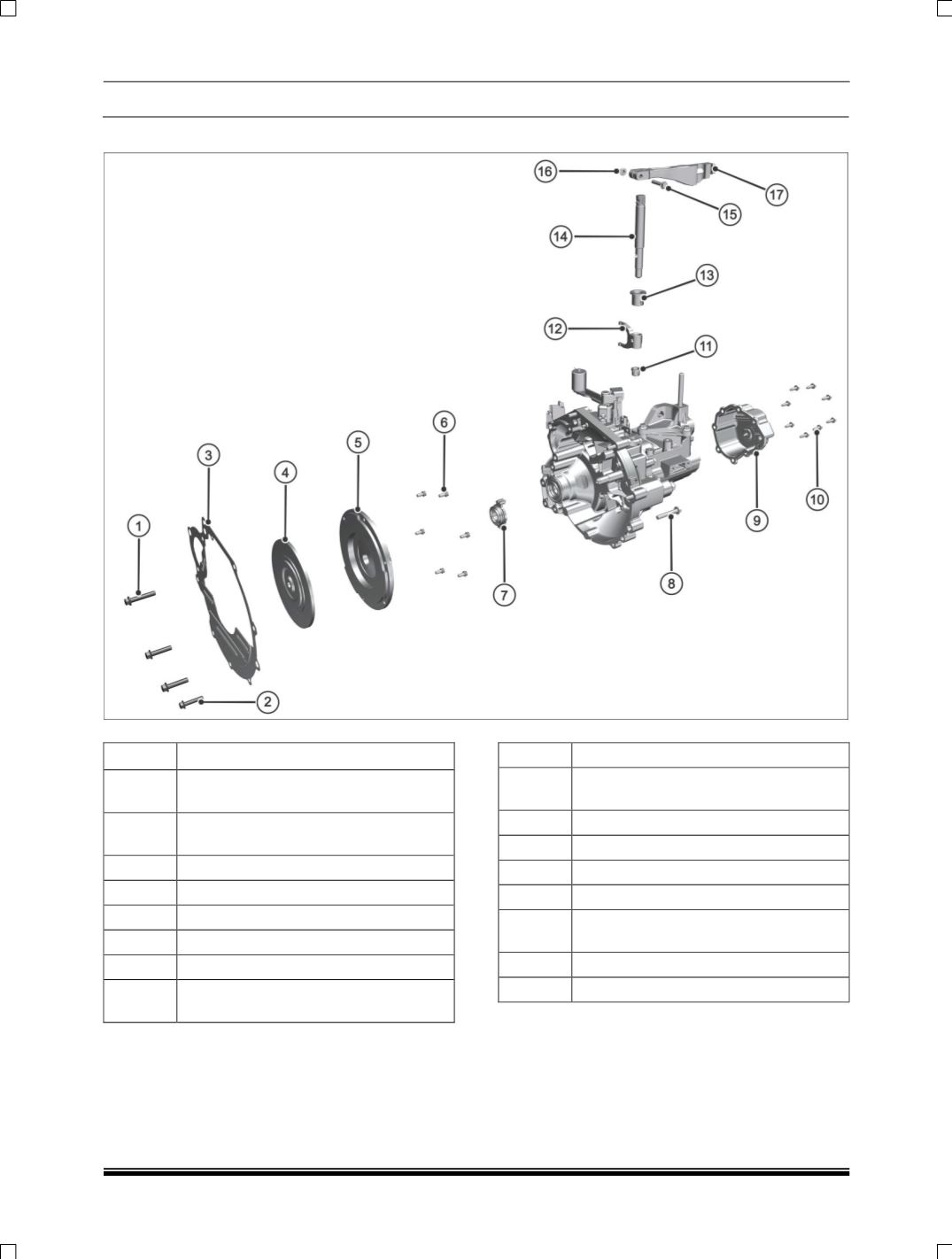

CONSTRUCTIONAL DETAILS (PETROL)
S. No.
COMPONENT DESCRIPTION
1
Hex Fl Bolt M10X55 TS17130-8.8
SS8451-8C
2
Hex Fl Bolt M10X45 TS17130-8.8-
SS8451S2-Y
3
Back Cover with Damping Pad
4
Clutch Disc Assembly
5
Clutch Cover Assy
6
Hex. Flange Screw
7
Sleeve
8
Hex Fl Bolt M10X65 TS17130-10.9-
SS8451-8CH
9
Rear Cover
10
Hex Fl Bolt M8X25 TS17130-8.8-
SS8451-8C
11
Bush, Lower
12
Clutch Release Yoke
13
Bush, Upper
14
Clutch Release Shaft
15
Hex Fl Bolt M8X45 TS17130-8.8-
SS8451S2-Y
16
Hex Nut AM8 TS17430-8-SS8451-8C
17
Clutch Release Lever
Clutch is a mechanism interposed between engine
and the Transaxle which enables engine power as
well as torque of the engine to be transmitted to the
transaxle through friction drive. When clutch pedal
is depressed the clutch is disengaged and therefore
motion and power flow from engine to Transaxle
and hence to road wheels is disconnected.
It is a single disc dry friction type clutch having 200
mm dia. clutch disc. Clutch pressure plate assembly
is diaphragm spring type. Clutch actuation is
through mechanical linkages (cable).
