1.2L REVOTRON ENGINE
90

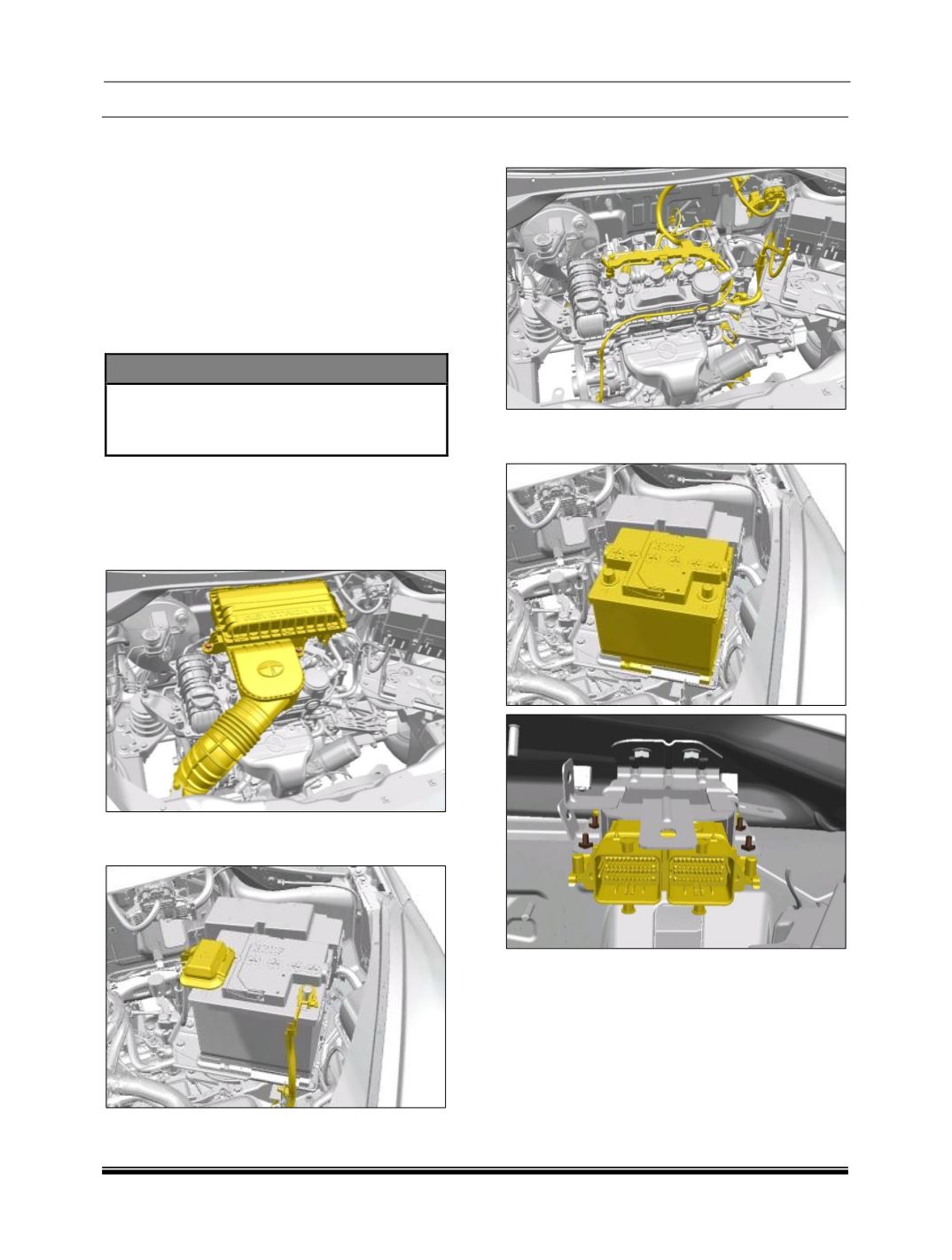

7. ON VEHICLE SERVICE PROCEDURE:
A. ENGINE REMOVAL AND REFITMENT :
Description
In many cases, the engine can be repaired while
still in the vehicle. The engine must be removed in
cases where the engine has been severely
damaged beyond repair or the type of repair
necessitates removal. Use the following
procedure as a guide to engine removal and
installation.
Engine Removal
NOTE
Access to an overhead hoist will ease
removal of the engine.
Use a vehicle lifting hoist, if available.
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Open the hood (bonnet) of the vehicle.
3. Remove the air filter assembly and intake
system hoses from the engine.
4. Disconnect the negative (-) cable and then
the positive (+) cable from the engine.
5. Disconnect and label the Engine wiring
harness connection with ECU.
6. Remove Battery, Battery plate and ECU from
the vehicle.
