SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
3

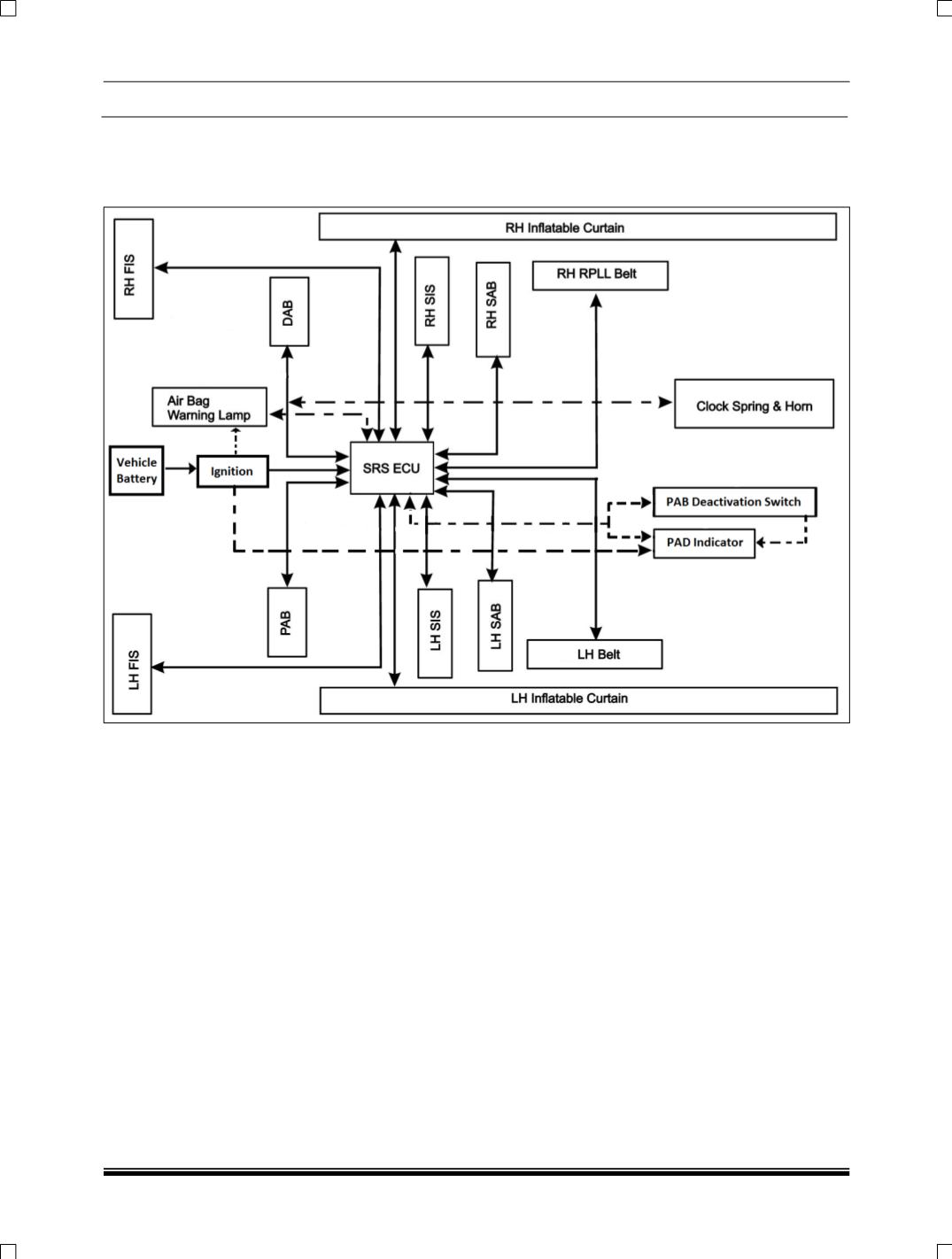

1.2. SYSTEM LAYOUT
RESTRAINT WITH AIRBAG
This Vehicle is equipped with 4 loops of Air bag systems.The layouts of this loop is given below
A. DRIVER AIRBAG MODULE (DAB)
Fitted on the steering wheel with a horn pad
having tear seams.
B. PASSENGER AIRBAG MODULE (PAB)
Integrated type, rigidly attached to cross member
with dashboard visible surface having tear seams
in the area covered by the PAB module.
C. SRS CONTROL UNIT
Fitted on the floor tunnel along the centre line of
the vehicle under the center console.
D. AIRBAG WARNING LAMP
Fitted inside instrument cluster.
E. RETRACTOR PRETENSIONER AND LOAD
LIMITER CONFIGURATION BELTS (RPLL)
Fitted inside B pillar - RH side
F. FRONT IMPACT SENSOR
(FIS) (RH & LH)
These sensors are mounted on vertical members
of front end module on the both side i.e. RH & LH.
G. BCM (BODY CONTROL MODULE)
The body control module is the primary hub that
maintains functions, such as internal and external
lighting, security and access control, comfort
features for doors, and other convenience
controls.
H SIDE AIRBAG
(SAB)
LH & RH
These airbags are located in seats which inflate
between the occupant and door.
I SIDE IMPACT SENSOR
(SIS) (LH & RH)
These sensors are mounted on side “B” pillar at
the bottom end.
J INFLATABLE CURTAIN
(LH & RH)
In the vehicle, curtain Airbags are folded and
installed behind roof headliner on both sides of
the vehicle.
