5.3 AUTO RELOCK

5.3.1 Description

For added security, when the vehicle is Unlocked and if any of the doors is not opened for a predefined time,

then the vehicle shall get locked after this predefined time elapsed.

Auto Relock feature in a vehicle shall be configurable during service.

5.3.2 Conditional Requirements

Activation –

• RKE/PKE unlock is provided &

• If no door is opened for the time period 30 seconds

Exit Condition

Within 30 sec if,



A lock command is request from Remote key



Key In is ON



Any of the four/five doors opened.



Ignition is ON or Accessory is ON



Relock shall exit if BCM doesn’t get valid unlock signal from the door actuators

5.3.3 Operating Voltage Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Auto Relock.

Normal operating voltage

12V

Min & Max operating voltage range

9V-16V

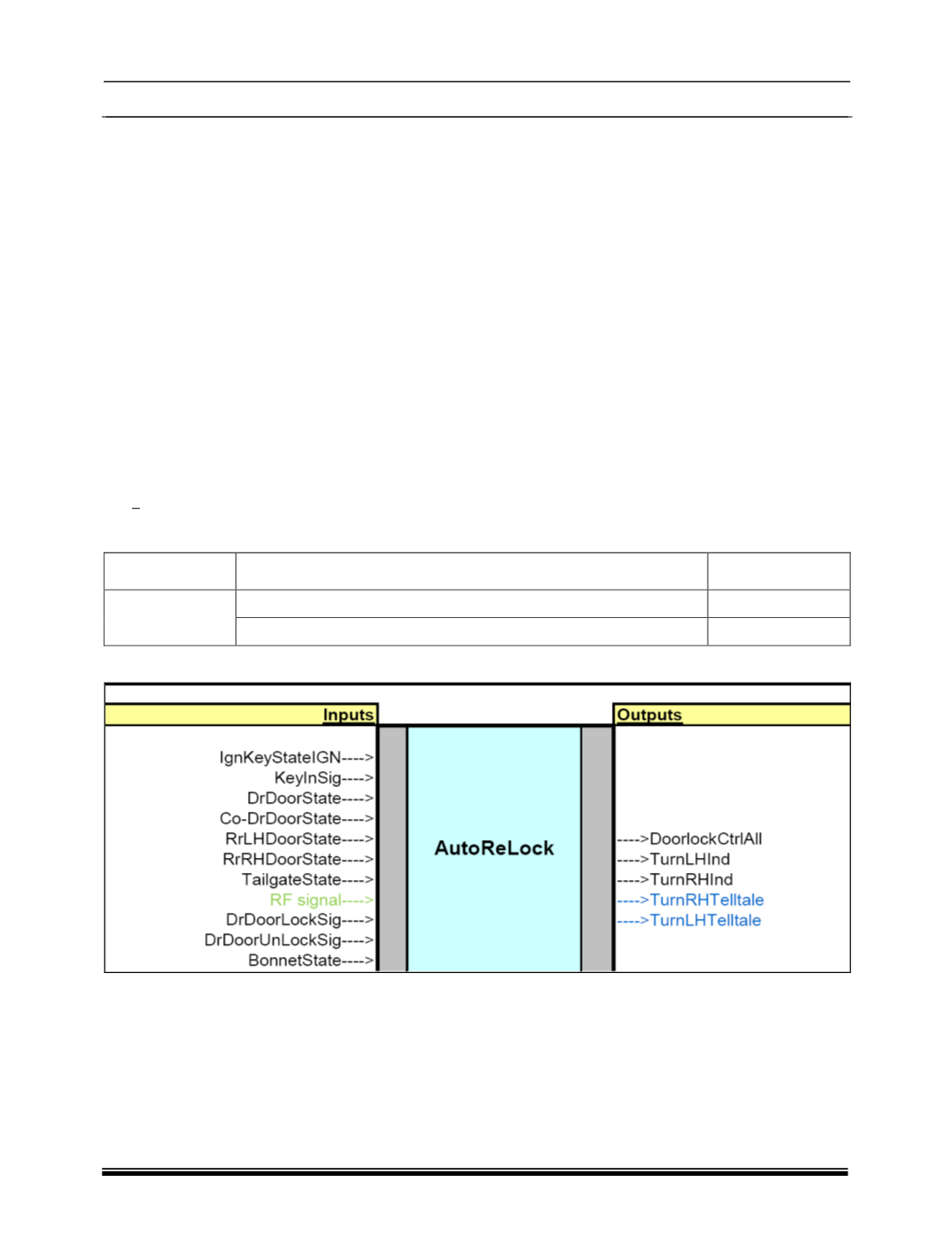

5.3.4 Inputs & Outputs
