ELECTRICAL
79

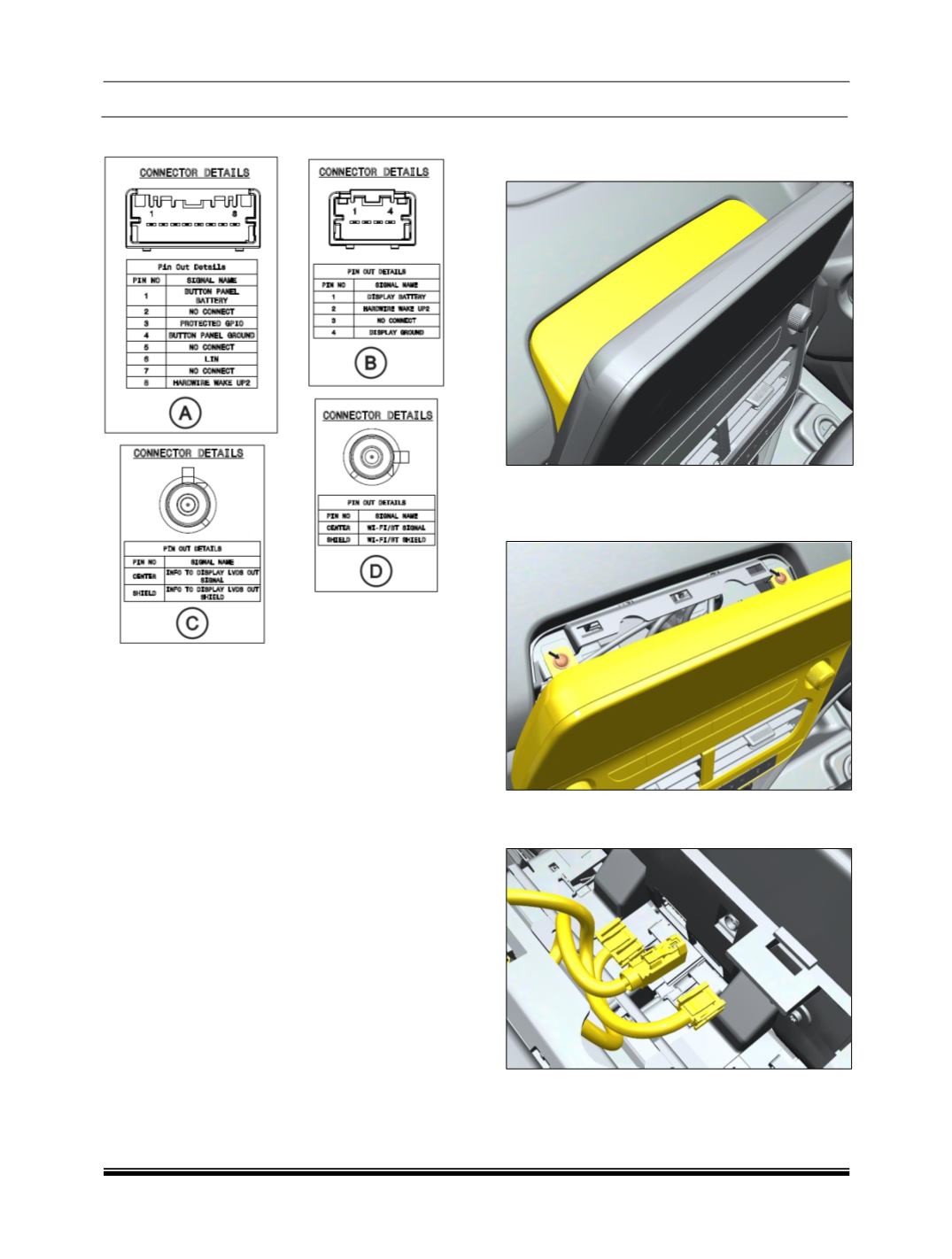

CONNECTOR DETAILS
SPECIFICATIONS
Operating voltage: 9-16V
Test voltage: 13.5V
Operating current: 1.5A 4×0.5@4 ohm load
Maximum current: 5A
Operating temperature: -30ºC - 70ºC
Storage temperature: -40ºC - 90ºC
Leakage current: 0.6mA max at 13.5V, 25ºC
REMOVAL
1. Carefully pry out cover assembly
2. Remove the 2 mounting screw and
Disconnect all the electrical connections to
take out the display.
3. Disconnect all the electrical connections to
the control panel..
