c)
Horn connector
PIN
DETAIL
C1
To steering wheel for horn (+ve)
C2
To steering wheel for horn (-ve)

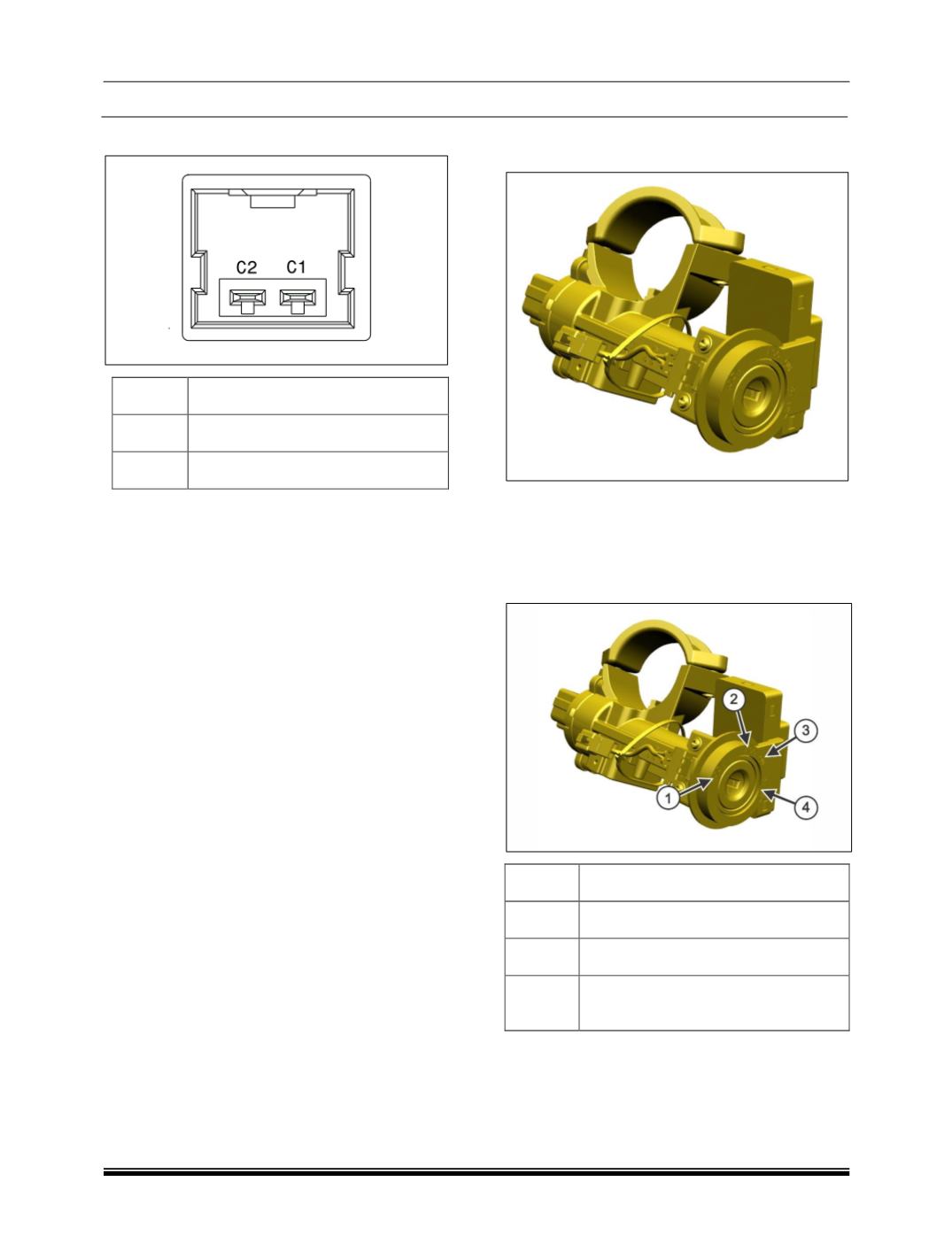

14. STEERING LOCK CUM IGNITION
SWITCH (IF APPLICABLE)
FUNCTION
To lock the steering wheel
To start & stop the engine
To switch on accessories and other electrical system
1
Steering lock position & key out
2
Accessory On Position
3
Ignition On Position
4
Vehicle start position key self-return
to ignition on position
