BRAKES

21

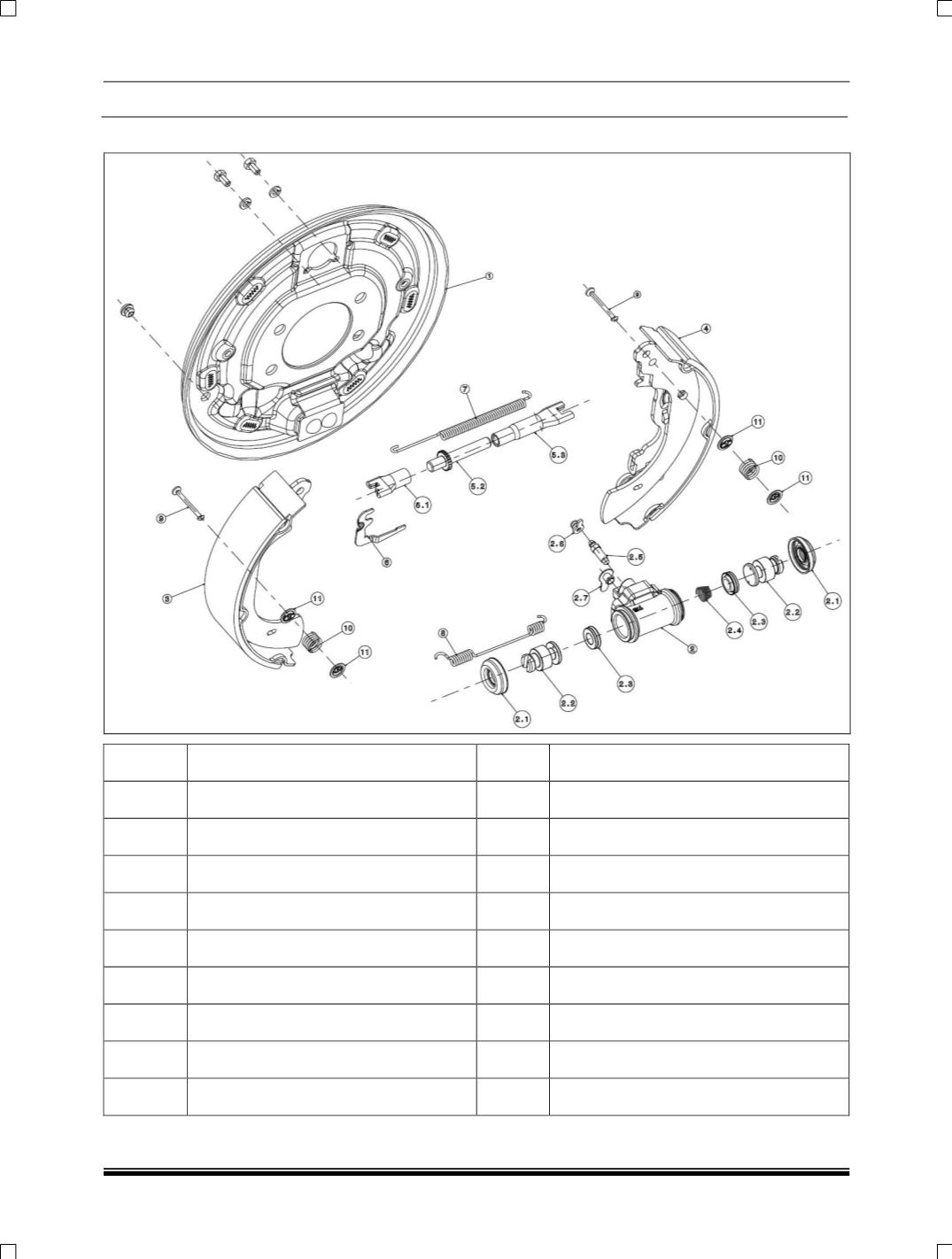

13.REAR DRUM BRAKES:

DESCRIPTION

DESCRIPTION

01

BACKPLATE COMPLETE LH AND RH

04

TRAILING SHOE WITH HBL

02

WHEEL CYLINDER ASSEMBLY

05

AUTO ADJUSTER ASSEMBLY

2.1

BOOT

06

ADJUSTER LEVER

2.2

PISTON

07

UPPER SHOE RETURN SPRING

2.3

SEAL

08

LOWER SHOE RETURN SPRING

2.4

SPRING

09

SHOE SET PIN

2.5

BLEEDER SCREW

10

SHOE HOLD DOWN SPRING

2.6

BLEEDER CAP

11

SHOE HOLD DOWN CUP

03

LEADING SHOE WITH PIN
