SUSPENSION
37
INSTALLATION
Follow Reverse procedure for Installation of
Torsion Beam.
NOTE:
Apply soap water to the bush and the bore of twist
beam assembly before installation.
Tightening of RTB on body to be done in ECIE
condition. No jacking to be done on beam, avoid
oil based lubricant while pushing the bushes in
eye.
All RTB mounting fasteners to be fitted in ECIE
condition (applicable wherever bush fasteners)

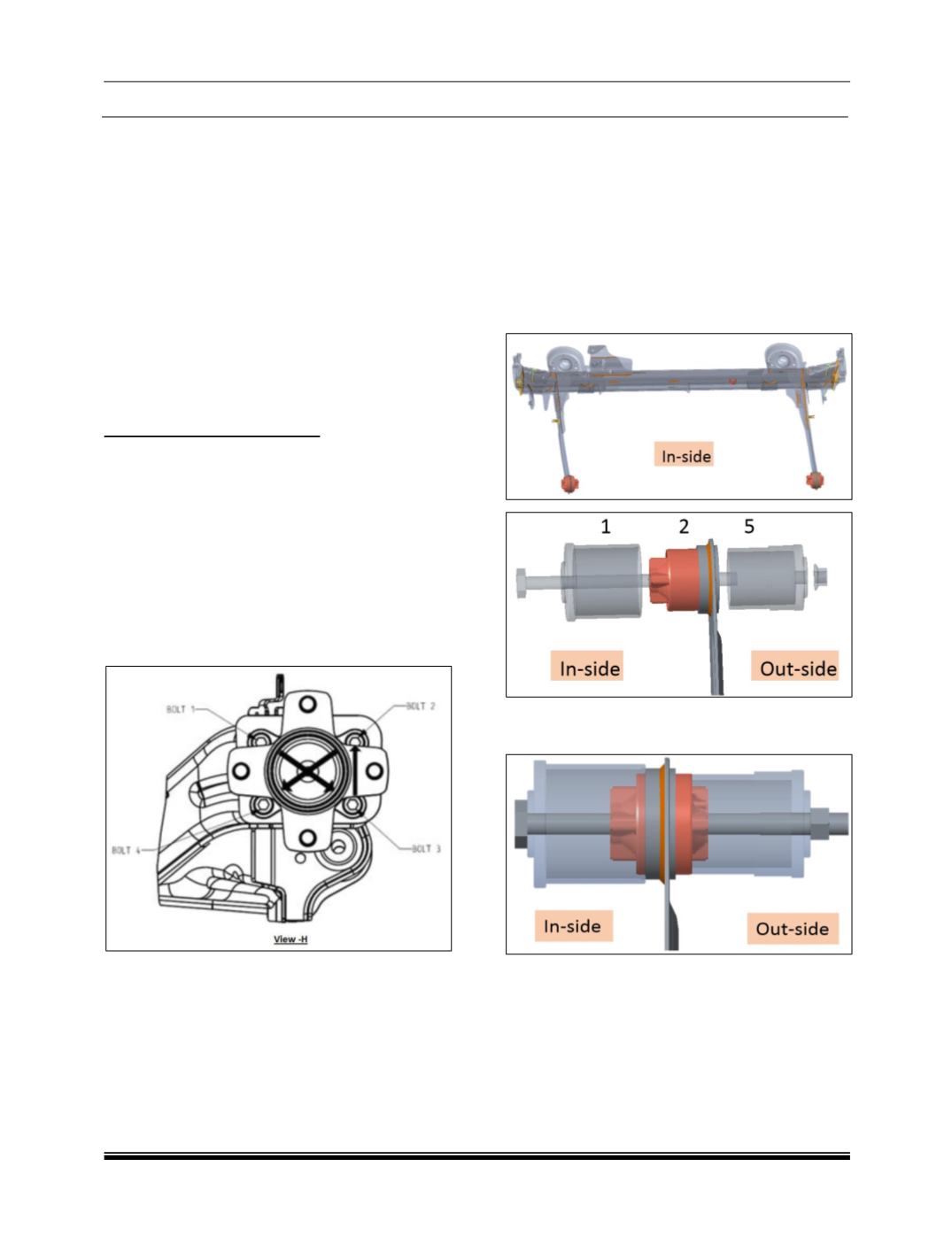

Gen-3 Installation Procedure:
1. It requires specific care for bolt tightening
sequence and torque value.
2. Sequences of bolt tightening of inner flange
into the knuckle/RTB normally carried out as
described in view H 2-3 Kg-m.
3. Tightening torque value (pre tension) is
applied to bolts in sequence of 1-3-2-4.
4. Bolt tightening sequence must be followed to
avoid abnormal residual face deformation of
gen-3 bearing.
INSTALLATION
Follow Reverse procedure for removal of Torsion
Beam.
22. RTB BUSH INSTALLATION
1. Place the Spacer Cup (1) inside of RTB
2. Place Puller cup (5) outside of RTB align with
RTB Bush (2)
3. Insert the bolt from spacer cup(1) side and
tighten the nut until RTB Bush will come out
4. While
bush
fitment,
no
undue
deflection/twist/bending to be induces on the
blade
5. Finally Tighten the nut until the bush come out
from the RTB
