KRYOTEC ENGINE
102

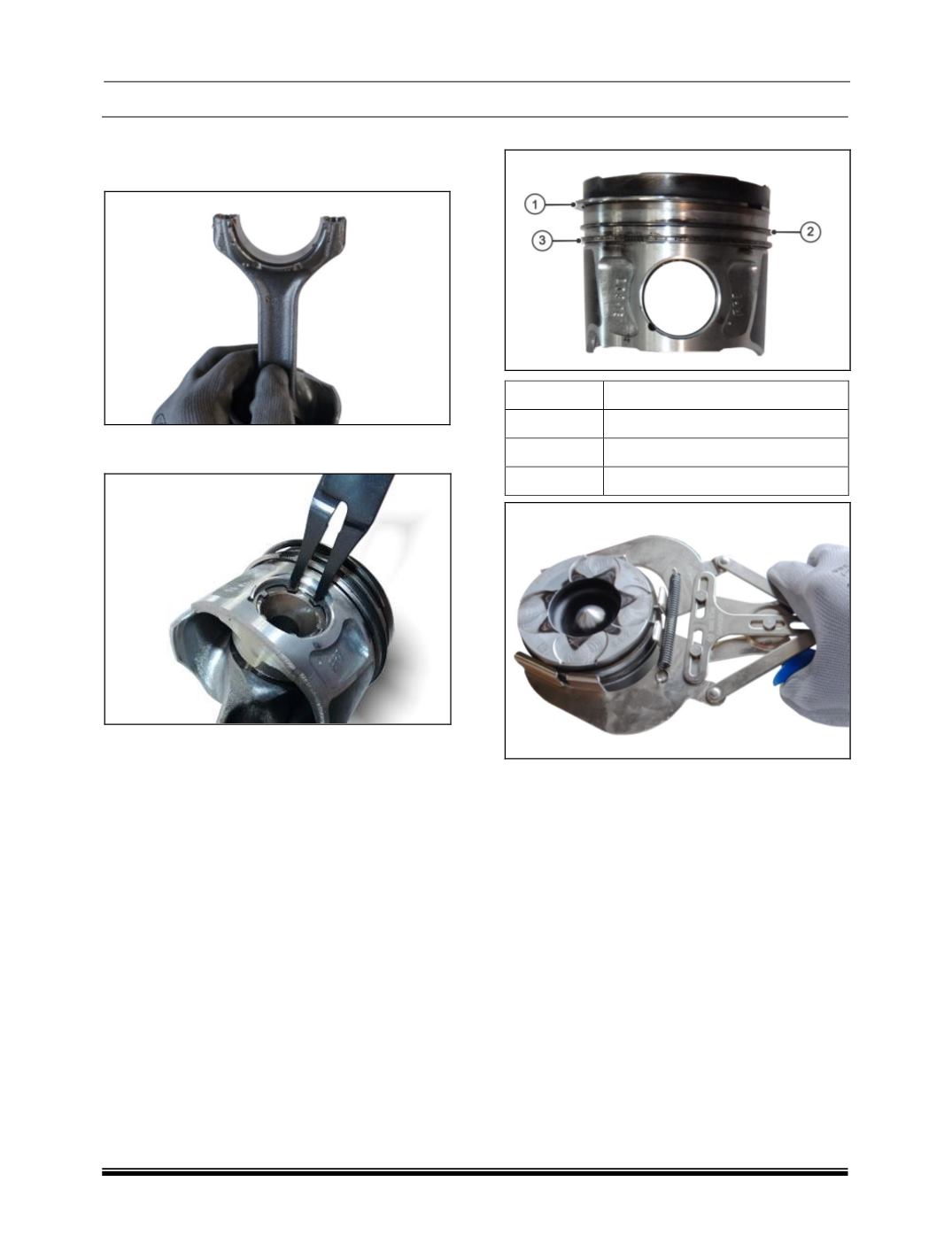

xi. REMOVAL OF PISTON AND CONNECTING
ROD SUB-ASSEMBLIES
1.
Remove
the connecting rod bearing shells.
2. Remove piston pin circlip from both side of
piston pin.
3. Remove the connecting rod and piston pin.
4. Remove piston rings using expander.
Callout
Description
1
Top Ring
2
Second Ring
3
Oil Ring
NOTE
Refer “Repair and Inspection Details” section for
Inspection details.
