2. Do not use camera when tailgate is open. If tailgate is open, visual information may not be the actual rear
view of the vehicle & system will warn with message 'Tail Gate Open, Please close!.
3. Do not attach any advertisement or styling or any kind of stickers on top of camera. If this happens,
camera cannot provide you the visual image.
4. Do not add any accessory, which will obstruct camera field of view.
CLEANING CAMERA
1. Due to environmental reasons, dust, mud or fog may accumulate on the camera lens. So regularly clean
the camera lens.
2. Use water to clean the camera lens. Do not use extreme cold extreme hot water. Rapid changes in
temperature may brittle the camera lens.
3. Wipe the camera lens with soft cloth.
4. Do not use hard cloth or material to wipe the camera lens. This will cause scratches on the camera, and
leads to deteriorated visual image on the display.
5. Do not apply organic solvent, car wax, window cleaner or glass coat to clean the camera. If this is
applied, wipe it off as soon as possible.
6. Do not apply heavy force on lens, while cleaning.
7. Do not remove mud, snow on the camera lens using stick or hard material
1.30.2 BCM TO SENSOR ELECTRICAL INTERFACE

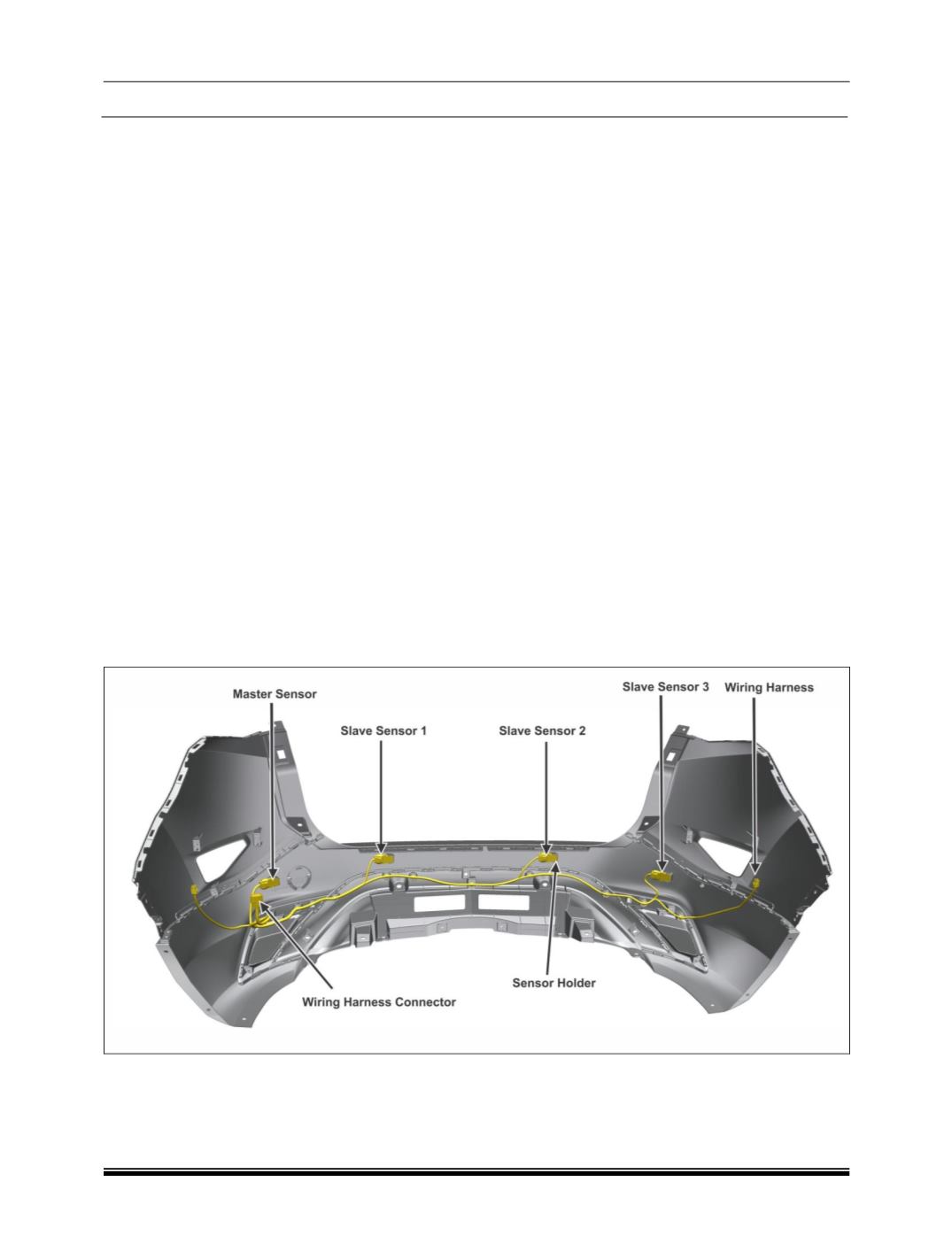

"Ultrasonic sensors shall be mounted on the rear bumper. The slave sensors shall be hardwired to the
master sensor and the master sensor shall be hardwired to the BCM ECU through LIN. The sensors shall be
powered through ignition and controlled by BCM ECU. The ground of the sensors shall be connected to the
ground of the vehicle."
