REMOVAL OF INSTRUMENT CLUSTER

WARNING



Remove the key from key barrel. This is necessary to ensure proper initialization of Instrument Cluster

Parameters like Odometer value learning from Immobilizer and DTCs in other ECUs against Instrument

Cluster.



Removing Instrument Cluster with Key IN is strictly prohibited otherwise it will corrupt the odometer

value.

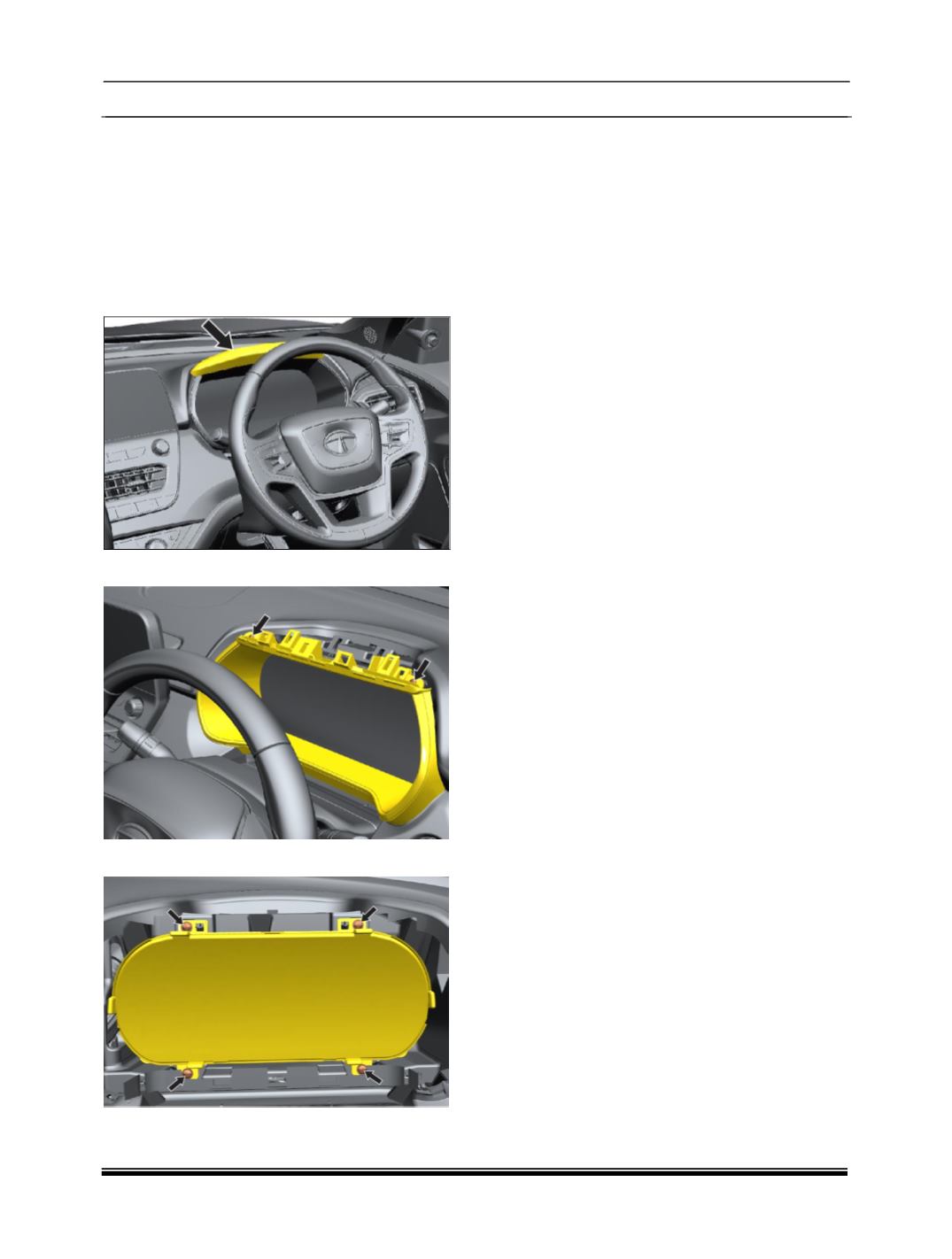

7. Remove cluster hood gently from its position by using screw driver.

8. Loosen the mounting screw of the instrument cluster cover

9. Now remove the upper mounting screws of the instrument cluster.
