SUSPENSION
18
8.
EXPLODED VIEWS REAR SUSPENSION

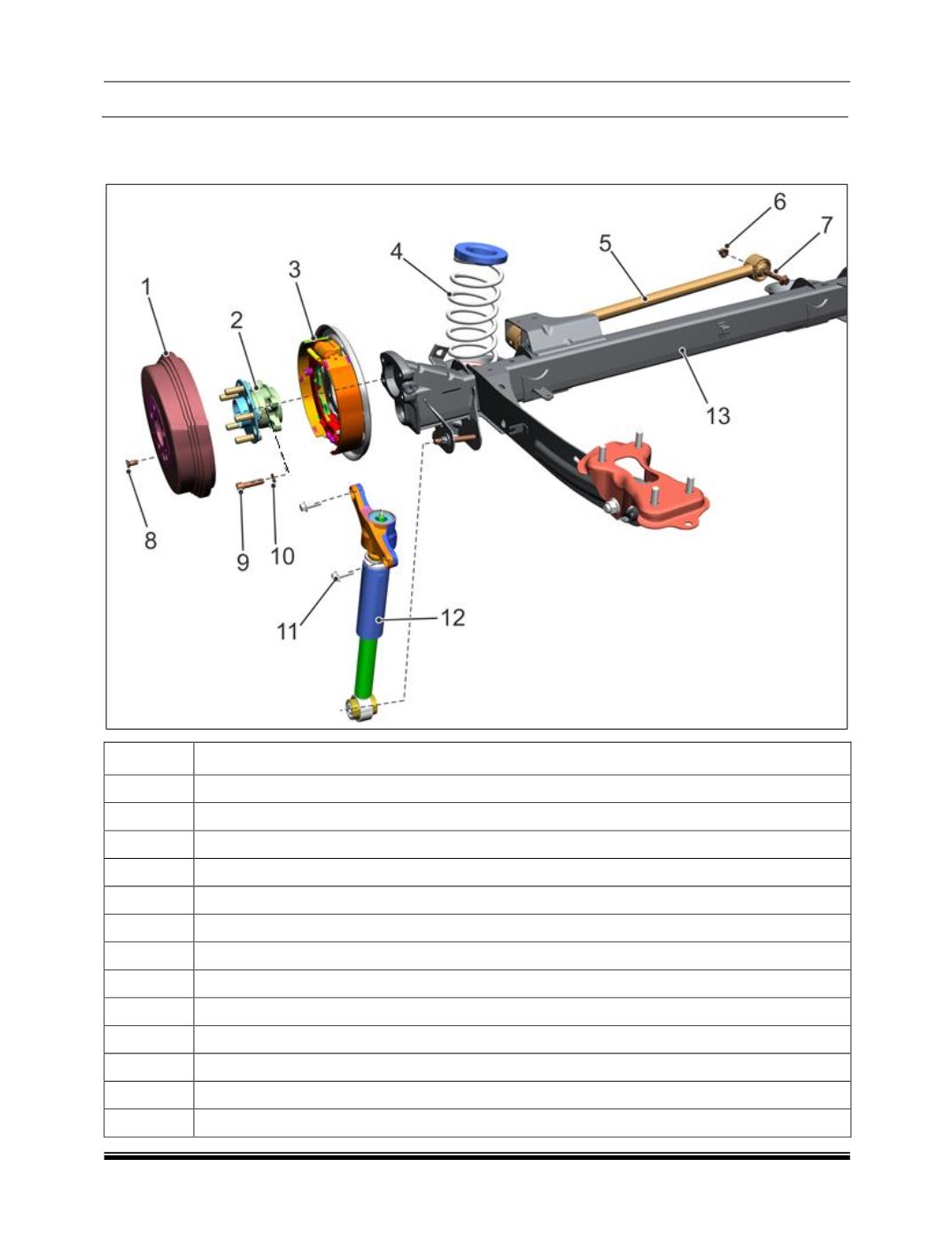

A) REAR AXLE EXPLODED VIEW
SR. NO.
DESCRIPTION
01
BRAKE DRUM,REAR DIA. 254
02
HUB ASSY
03
DRUM BRAKE ASSY,REAR
04
REAR SPRING;WITH ISOLATORS
05
PANHARD ROD
06
H/FL NUT AM14X1.5 TS17430 -10SS8451S2-YH
07
BOLT M14X1.5X95 TS17130-10.9SS8451S2-YH
08
SL CSK SCREW M10X20
09
HEX SCREW
10
WASHER
11
SCR M12X1.5X35
12
DAMPER ASSY,REAR
13
CROSS BEAM,REAR TWIST BEAM
