KRYOTEC ENGINE
72

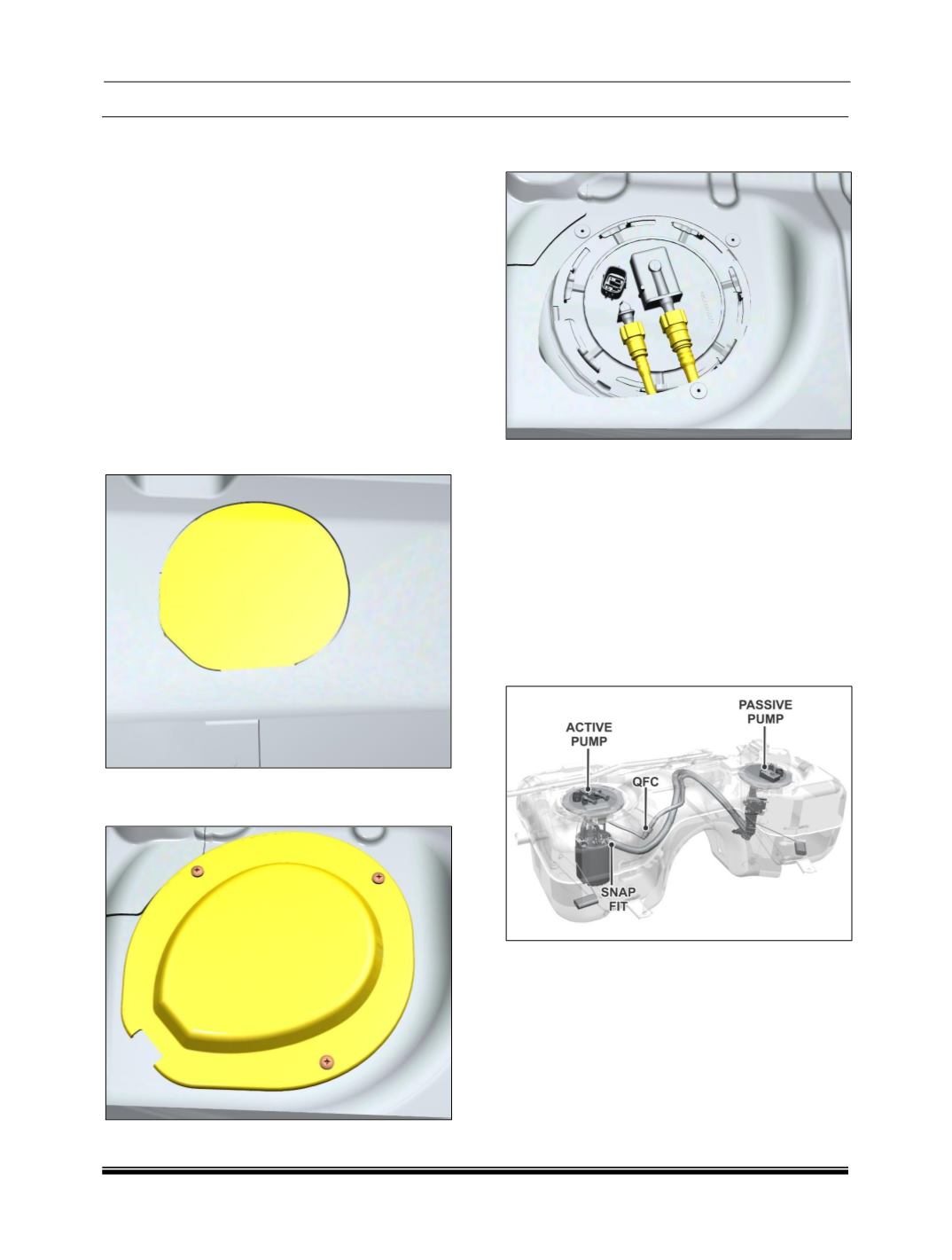

E. TANK UNIT
REMOVAL
CAUTION
Unless replacement is necessary, Tank unit, fuel
level sensor should not be removed from the tank
since the rubber parts i.e. gasket, seals etc. may
harden when exposed to air and light.
Never apply an excessive force to the tank unit
nipple or lead wire. This may result in bent or poor
contact.
1. Relieve fuel pressure in fuel feed line.
2. Disconnect the negative battery cable.
3. Fold the 2
nd
row Seat and somersault it to
access the in tank pump cut out.
4. Lift the carpet with foam at the cutout.
5. Remove mounting screw and open fuel
inspection cover.
6. Disconnect the electrical connection of the fuel
pump module.
7. Disconnect the fuel delivery line and the return
line connecting fuel pump module.
8. Using Special tool (5412 5890 4701) unscrew
the cam lock plate.
9. Hold the fuel delivery module, lift it in vertical
direction so as to access the Quick connector
and snap fit.
10.Disconnect the line which carries the fuel from
passive side to active side by means of
dislodging the snap fit provided at pump
retainer.
11.Disconnect the QFC joint which carries fuel
from active side to passive side.
12.Remove the in-tank pump from the tank
carefully.
NOTE
Make sure breather line Quick connector is not
getting stuck during fuel tank removal.
Seals and gasket not to be reused.
FITMENT
For fitment follow removal procedure in reverse.
