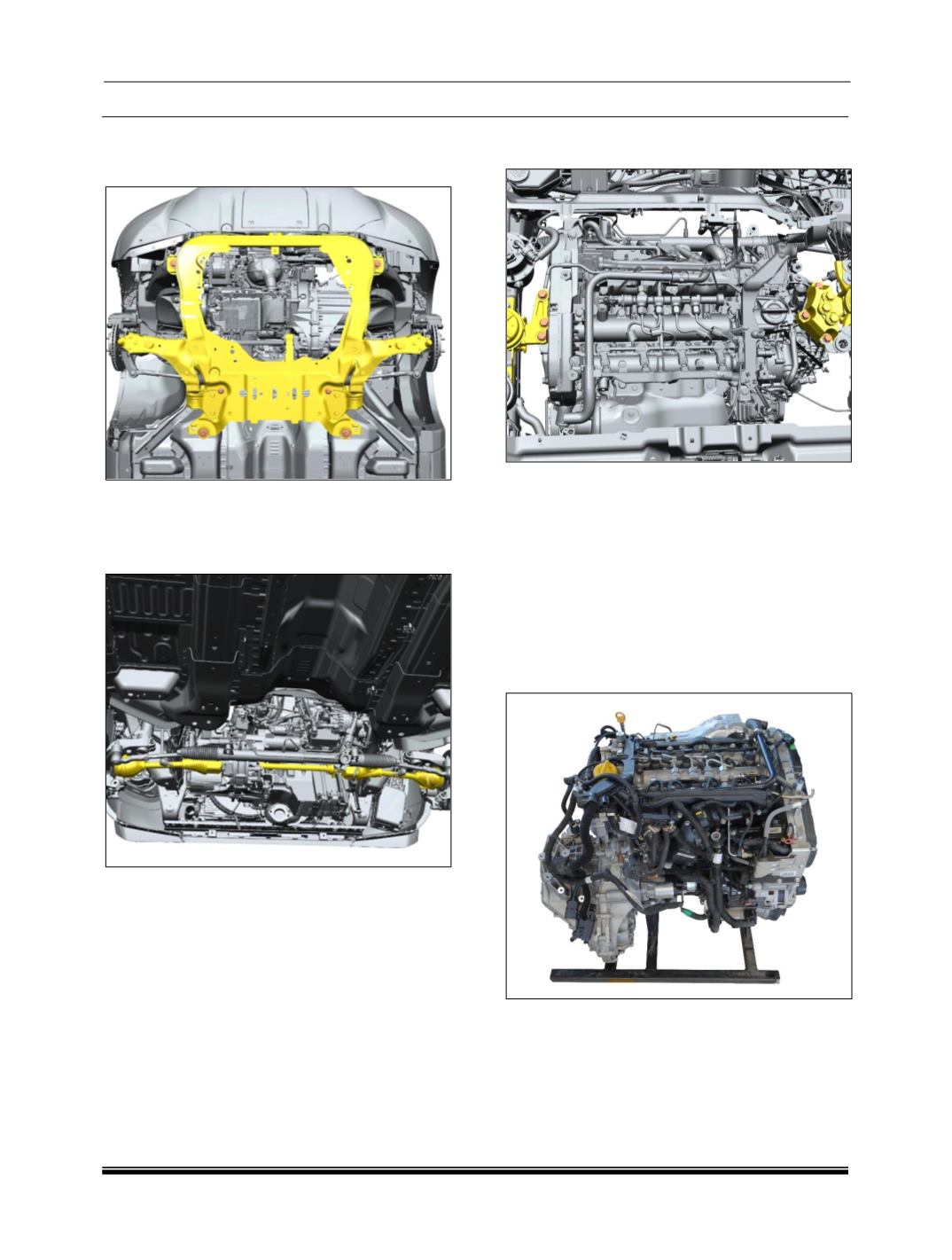

50.Remove mounting bolts and take down the front
sub frame assembly along with ARB, ‘C’ mount
and lower link assembly.
51.Remove drive shaft support bracket mounted
on the engine oil sump.
52.Disconnect drive shaft from transaxle. Support
suspended driveshaft.
53.Support the engine and transaxle assembly on
powertrain e link stand
(Lifter - 5412 5890 0614,
Support stand - 5412 5890 0618).
54.Remove the A-mount and B-mount mounting
bolts.
55.Slowly and carefully lower the assembly using
trans e-link stand
(Lifter - 5412 5890 0614,
Support stand - 5412 5890 0618).
CAUTION
Take care when raising the vehicle off the engine
and transaxle assembly. Verify all components and
electrical connections are disconnected prior to
raising the vehicle to avoid vehicle damage.
56.With help of a crane lift and place the engine on
support stand.
(Engine Support stand -: 5412
5890 2402).
