FATC
52

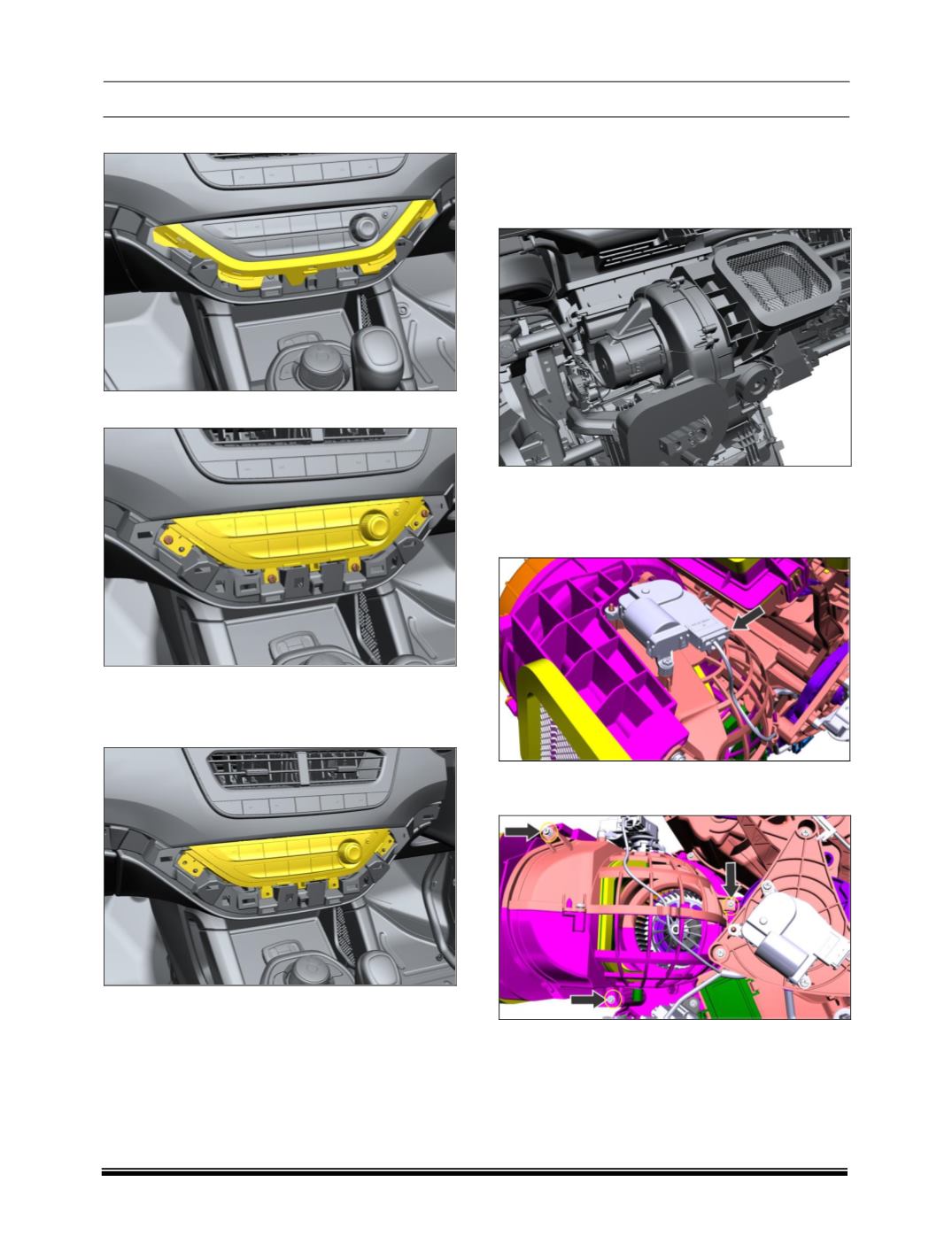

4. Remove Climate control bezel.
5. Remove four mounting screws of control panel.
6. Disconnect Electrical connection from control
panel.
7. Take out the control panel.
REFITMENT
For fitment, follow reverse procedure of removal.
C. BLOWER MOTOR REMOVAL AND AS-
SEMBLY
LOCATION
It is located on the top side of the HVAC unit.
ON VEHICLE BLOWER MOTOR REMOVAL
1. Remove Glove Box. (Refer Body Draft.)
2. Disconnect Electrical connection from Actuator.
3. Remove three screws and take out Intake As-
sembly.
