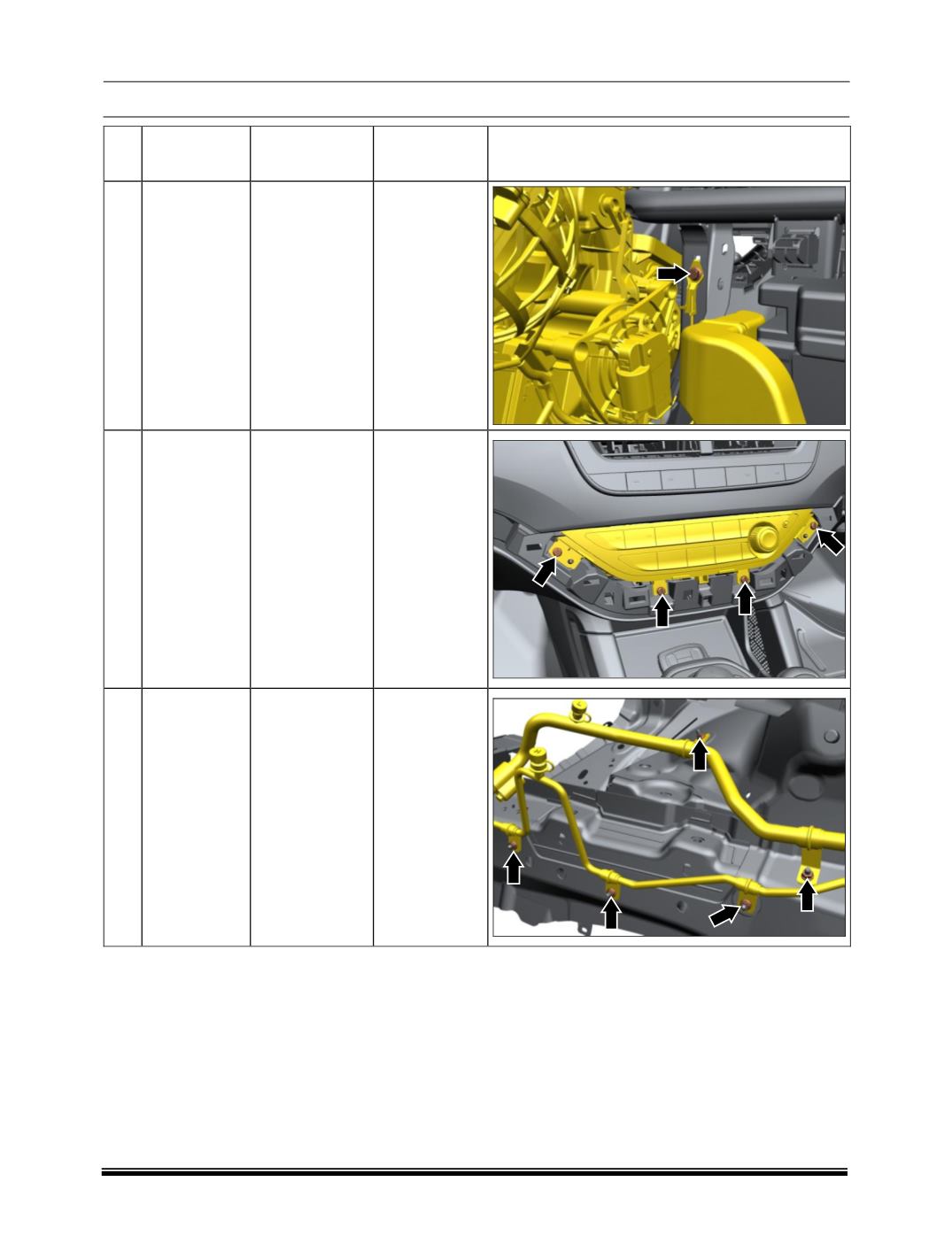

DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
3
HVAC side
earthin
connector
M6X12
6 ~ 8
4 Control module ST 4.8 X 25
2 ± 0.4
5
Liquid and suc-
tion
pipe
assembly
clamping on
BIW
HEX FL NUT
AM6
6 ~ 8
