HVAC
46

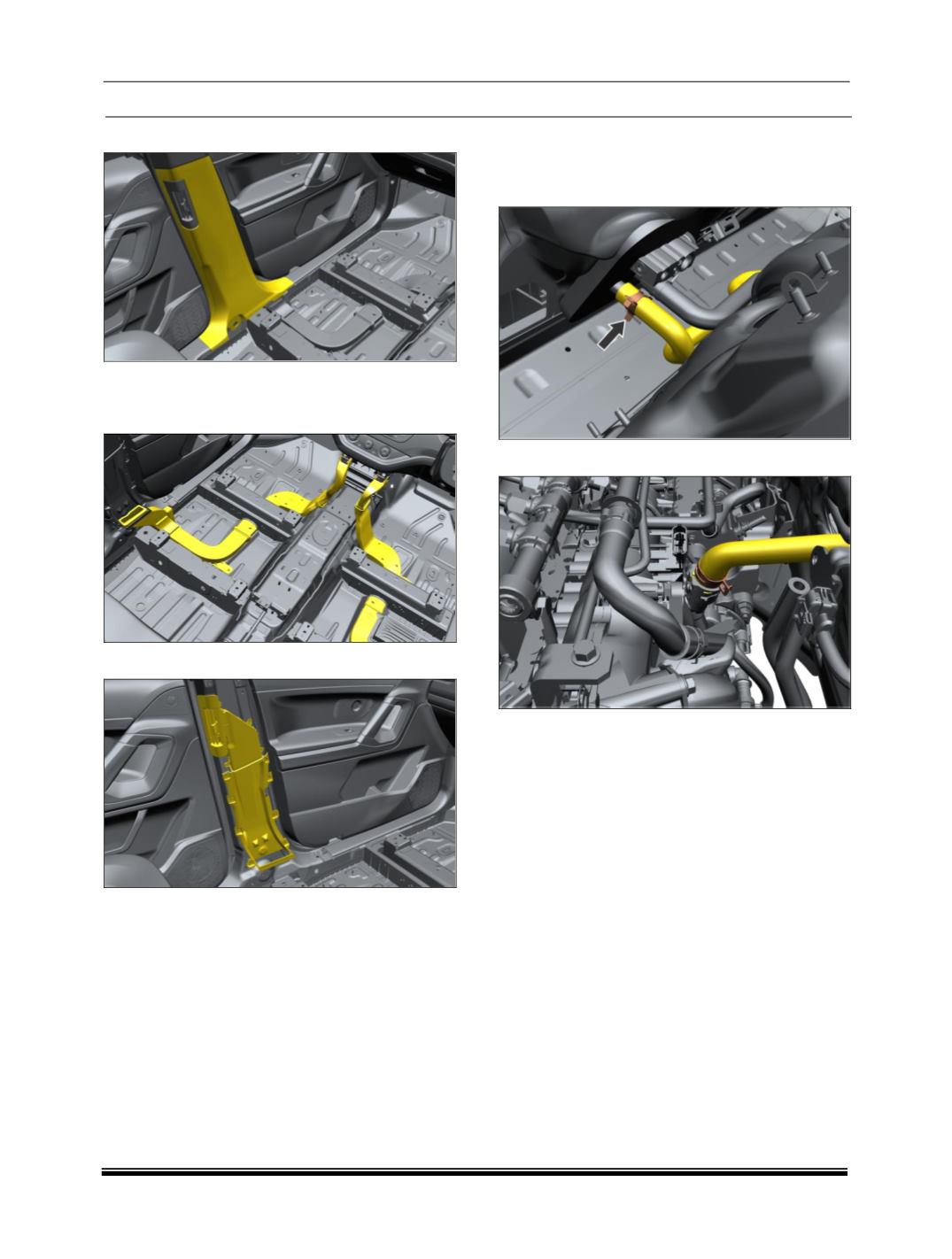

6. Remove B-Pillar.(From LH & RH side)
7. Remove B-Pillar Duct Assembly LH & RH
Mountings on Body and take out B-Pillar Duct
Assembly.
8. Remove B-Pillar Housing Rear Vent.(LH & RH)
ASSEMBLY
For assembly follow the reverse procedure of re-
moval.
G. HEATER HOSE REMOVAL AND ASSEMBLY
a) HEATER OUTLET HOSE REMOVAL
1. Remove clamp spring band from firewall side.
2. Remove clamp spring band from engine side.
3. Remove heater hose HVAC out.
FITMENT
For fitment follow the reverse procedure of removal.
