E. CRANKCASE

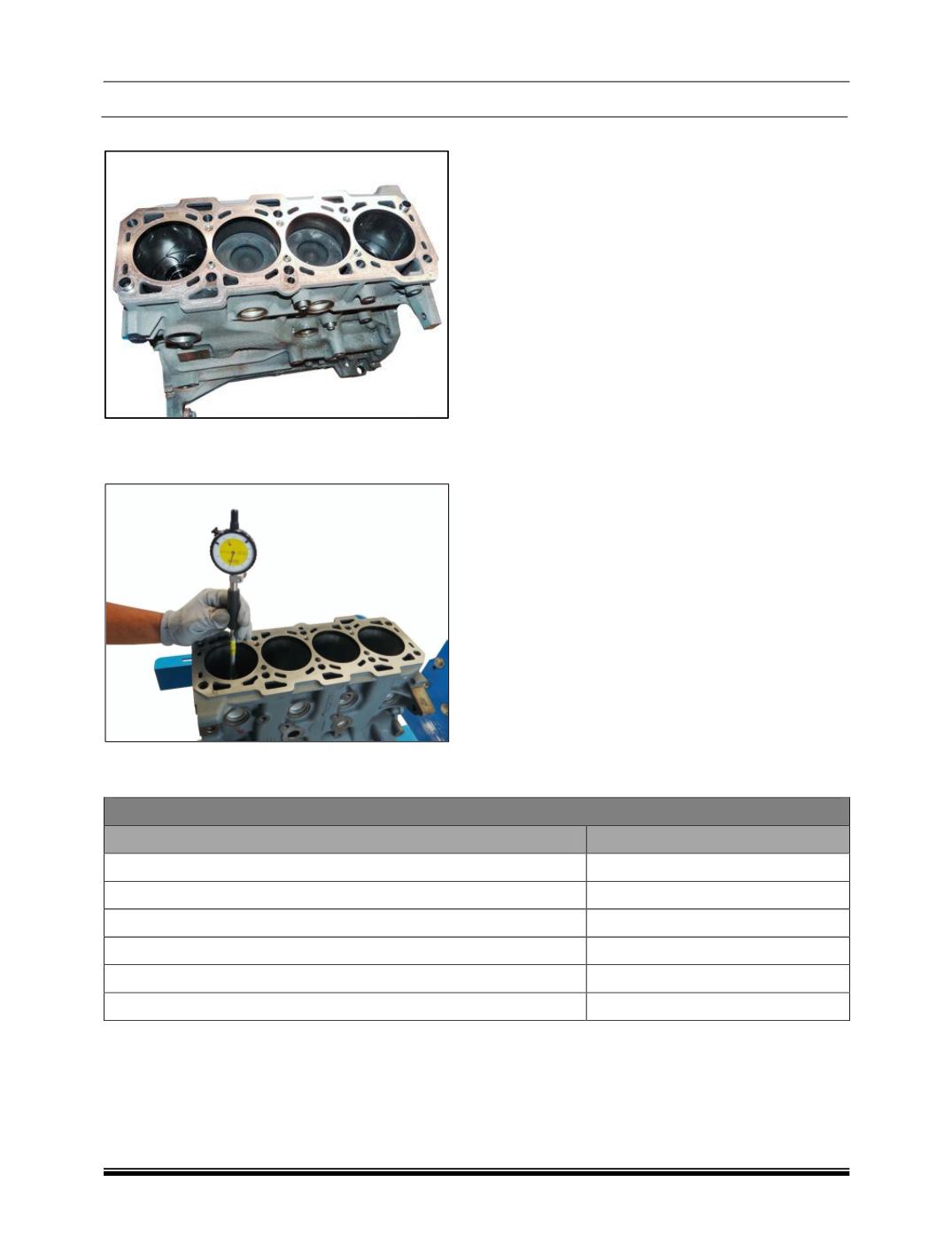

1. Inspect visually for crack or leakage in seals

2. Check cylinder bore for run outs.

3. Check cylinder bore for taper.

4. Check for scratch marks inside cylinder bore.

NOTE

In the case of refinishing, all cylinders bores must undergo the same increase.

CYLINDER BORE

Measure

Value

Internal diameter cylinder Bore - Class A (mm)

83.000 - 83.010

Internal diameter cylinder Bore - Class B (mm)

83.010 - 83.020

Internal diameter cylinder Bore - Class C (mm)

83.020 - 83.030

Cylinder Bore Out of Round (mm)

< 0.05

Cylinder Bore Taper

< 0.005

Oversize inner diameter cylinder bore (mm)

0.1
