KRYOTEC ENGINE
125

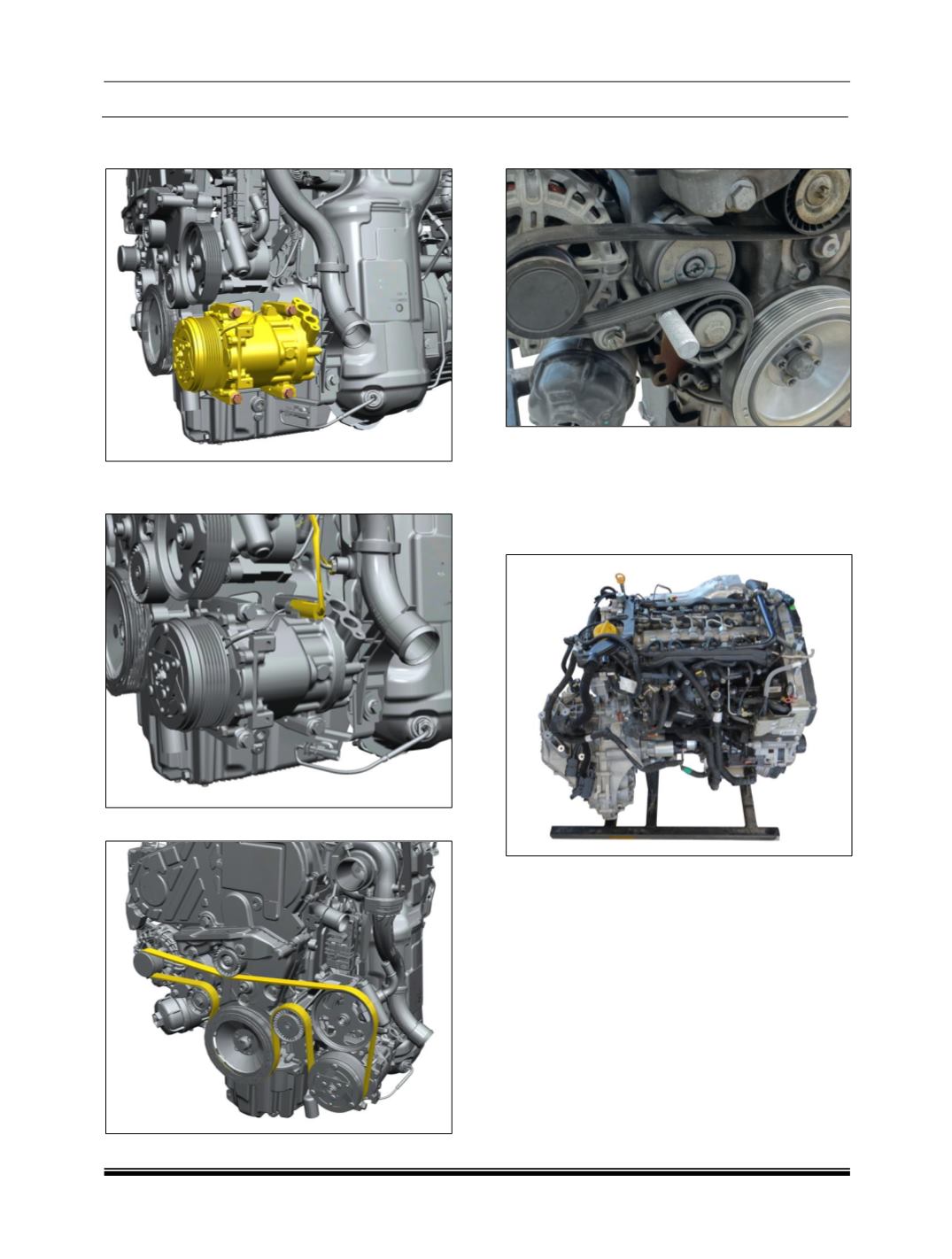

8. Install compressor assembly on the mounting
bracket.
9. Connect electrical connection to the
compressor.
10. Install auxiliary belt on the pulley.
11. Remove locking pin from belt tensioner of
auxiliary belt.
(Locking pin -: 5412 5890 0605)
.
12. Install clutch assembly.
(Refer Clutch section).
13. Install gear box assembly.
(Refer Gear Box
section).
14. Lift the engine and install on vehicle.
(Engine
Support Stand -: 5412 5890 2402)
.
