KRYOTEC ENGINE
114

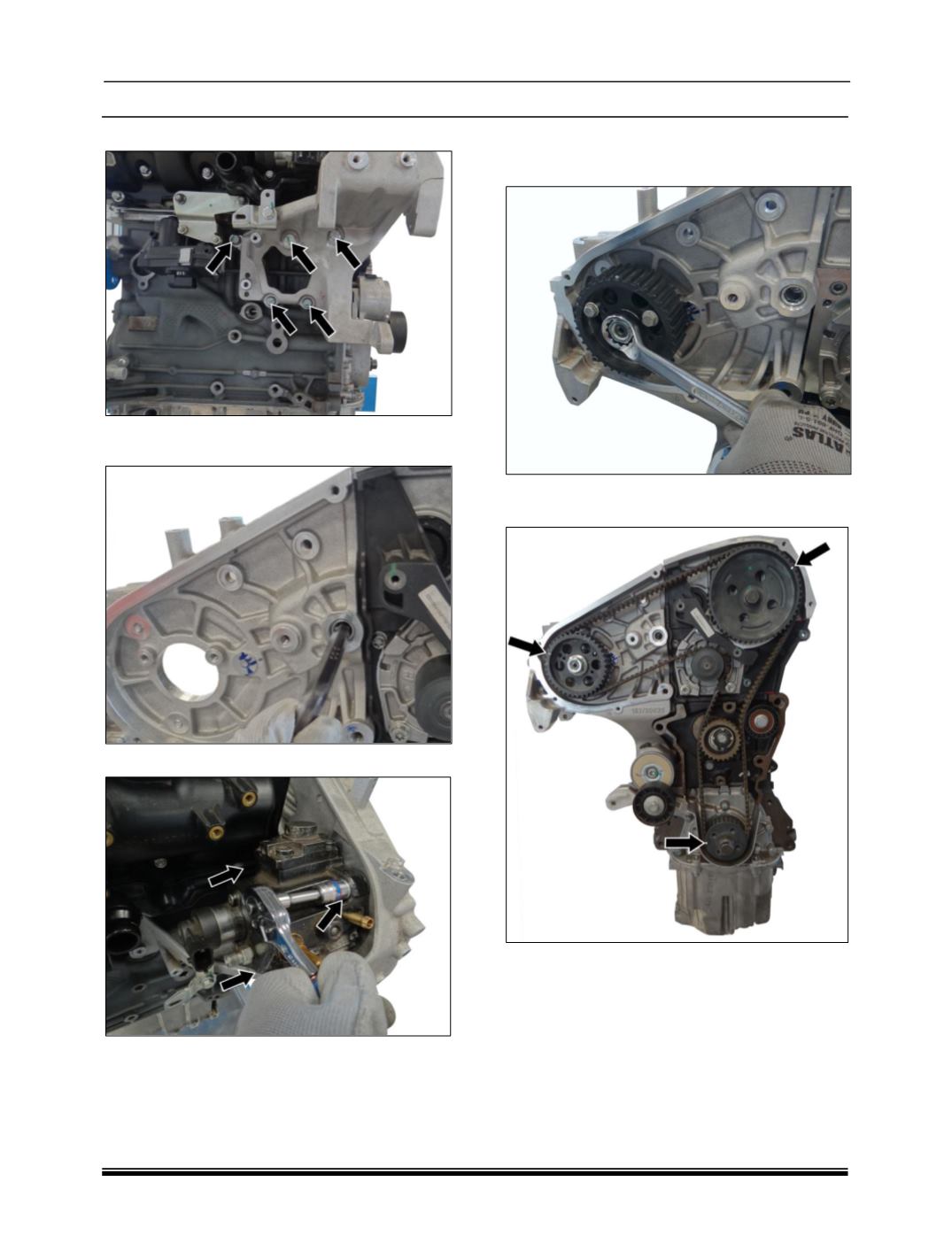

11. Align and install fuel pump bracket.
12. Adjust the spacer on fuel pump mounting
bracket.
13. Install fuel pump.
14. Using standard bolts lock the fuel pump gear.
Tighten mounting nut and remove the bolts
used.
15. Rotate timing gears to position the notching on
as shown. Then install timing belt.
NOTE
Timing belt has identification marks, two on the
groove and one on the teeth. This markers should
match with the timing gears.
The two marks on groove to be matched with fuel
pump and camshaft timing gear and one on the
teeth to be match with crankshaft timing gear.
