HARRIER BOOK 1

KRYOTEC ENGINE

103

B. ENGINE ASSEMBLY

i. FITMENT OF CYLINDER HEAD SUB-

ASSEMBLIES

Refer “Repair and Inspection Details” section

before reusing components.

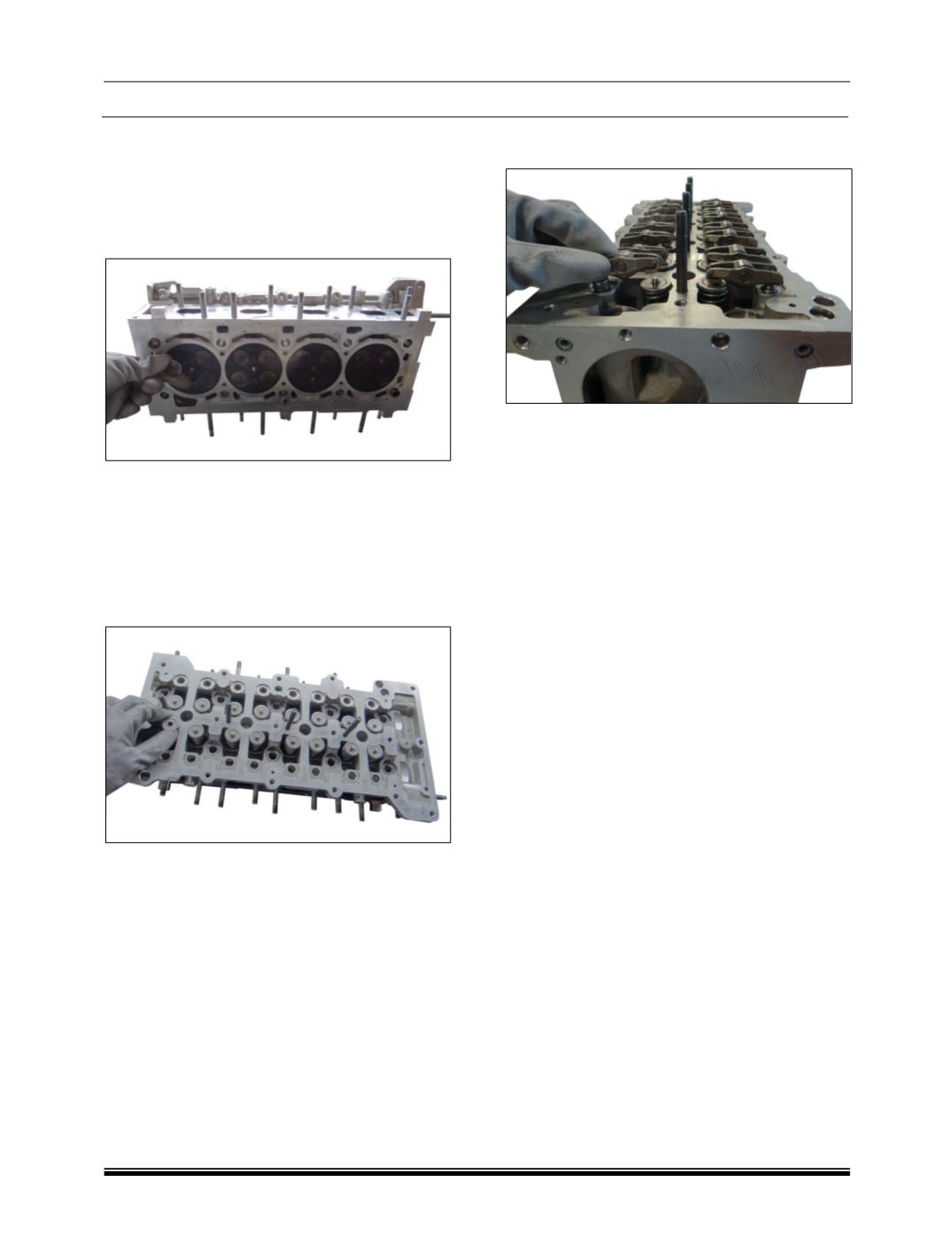

1. Fit inlet and exhaust valve from bottom side.

NOTE

Lubricate the valve stem and guide.

2. Fit the valve seats, valve retainers and using

special tool compress the valve springs and

place the spring lock halves.

(Handle -: 5530 5890 0101, Adapter -: 5412 5890

0606 & Support rail-: 5412 5890 0607)

NOTE

The lock halves hold the spring retainer in place

when relieving pressure applied by the spring

compressor.

3. Repeat the same procedure for all valves.

4. Install the roller finger follower and hydraulic

lash adjuster assemblies.

NOTE

Refer “Repair and Inspection Details” section for

repair details.
