ELECTRICAL
149
INSTRUMENT CLUSTER
REMOVAL
WARNING
Remove the key from key barrel. This is
necessary to ensure proper initialization of
Instrument Cluster Parameters like Odometer
value learning from Immobilizer and DTCs in
other ECUs against Instrument Cluster.
Removing Instrument Cluster with Key IN is
strictly prohibited otherwise it will corrupt the
odometer value.

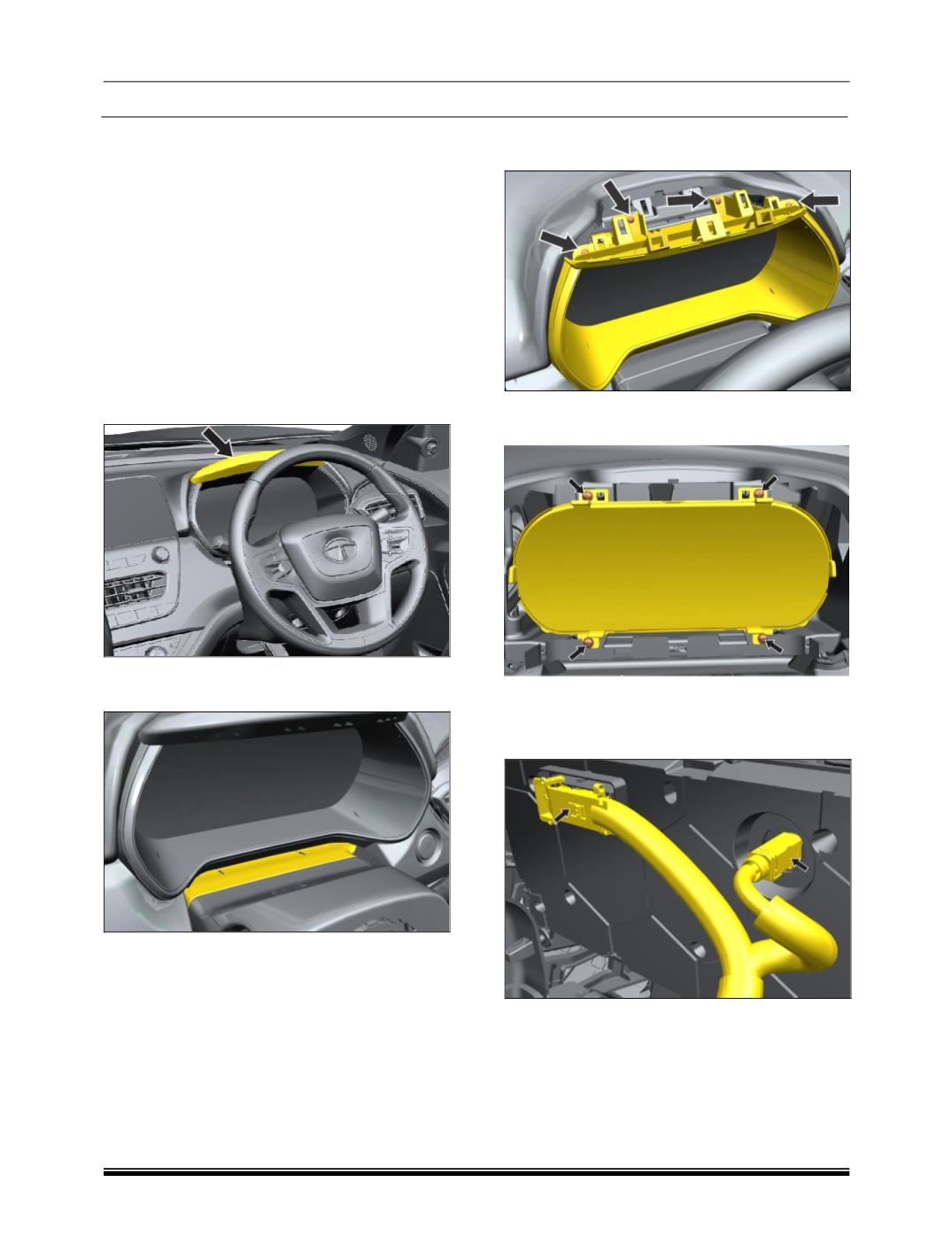

1. Remove cluster hood gently from its position
by using screw driver.
2. Pull out gap hider fitted on the dashboard sub
assembly.
3. Loosen and remove the mounting screw and
take out cluster bezel
4. Now remove the upper mounting screws of
the instrument cluster.
5. Remove
Instrument
cluster
electrical
connections.
For All other Variant
