9.
Loosen and remove the mounting screw of
inner handle.
10. Insert plastic wedge pin and remove the door
trim.
11.Disconnect the window winding connection
and remove the switch.

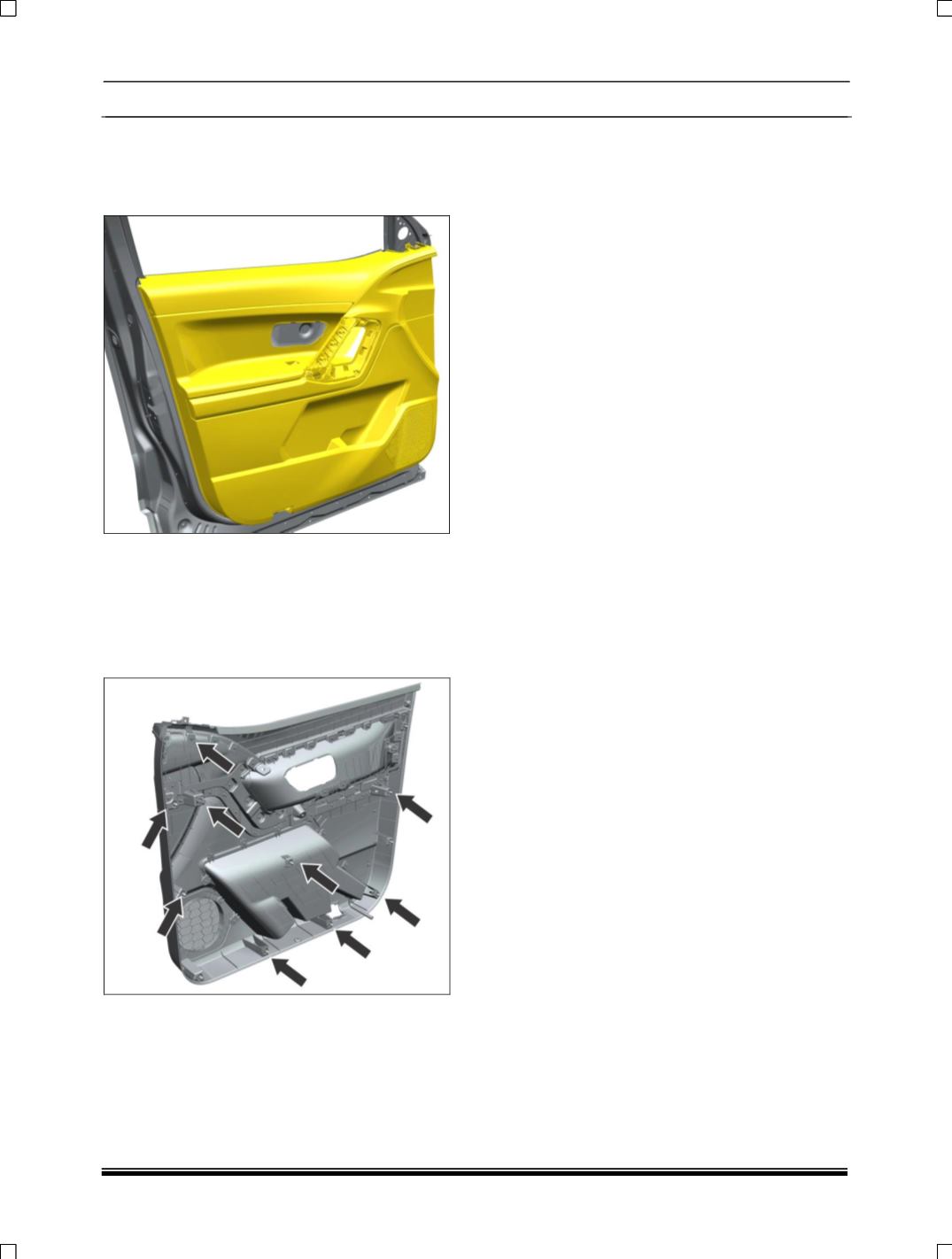

NOTE
While lifting door trim, care should be taken such
that tree clips don’t get damage. Below image
gives the location of tree clips on door trim.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
“For Side door Rattling Noise, Door Latch and
striker setting need to be done & maintain 1 mm
under flush condition.”
