HEATER CORE POSITION: POSSIBLE TO PASS THROUGH AIR IN CORE
CORE SIZE & FIN PITCH
185 (W) X176.2 (H) X36.5 (T) FIN PITCH : 1.8/2 mm

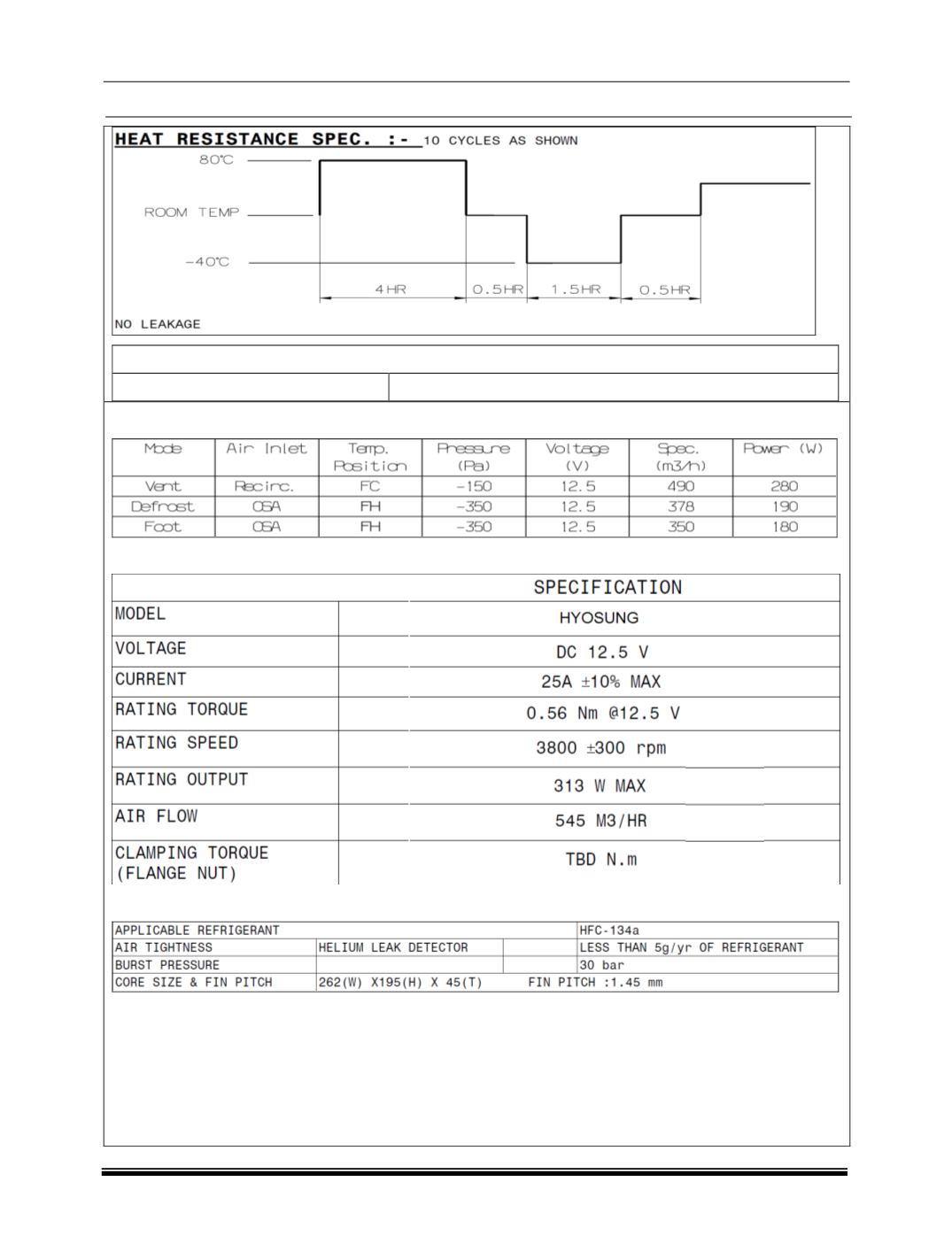

HVAC SYSTEM AIRFLOW DATA AT 12.5 V
2. SPECIFICATION:- BLOWER MOTOR
3. SPECIFICATION:- EVAPORATOR CORE
Please see the below sizes for Evaporator & heater core
1) Evaporator :Total size : 262 X 235 X 48.5mm
Core size : 262 X 195 X 45 mm
2) Heater :Total size : 219.6 X 181.35 X 40 mm
Core size : 184.6 X 181.35 X 34 mm
