C635 TRANSAXLE
40

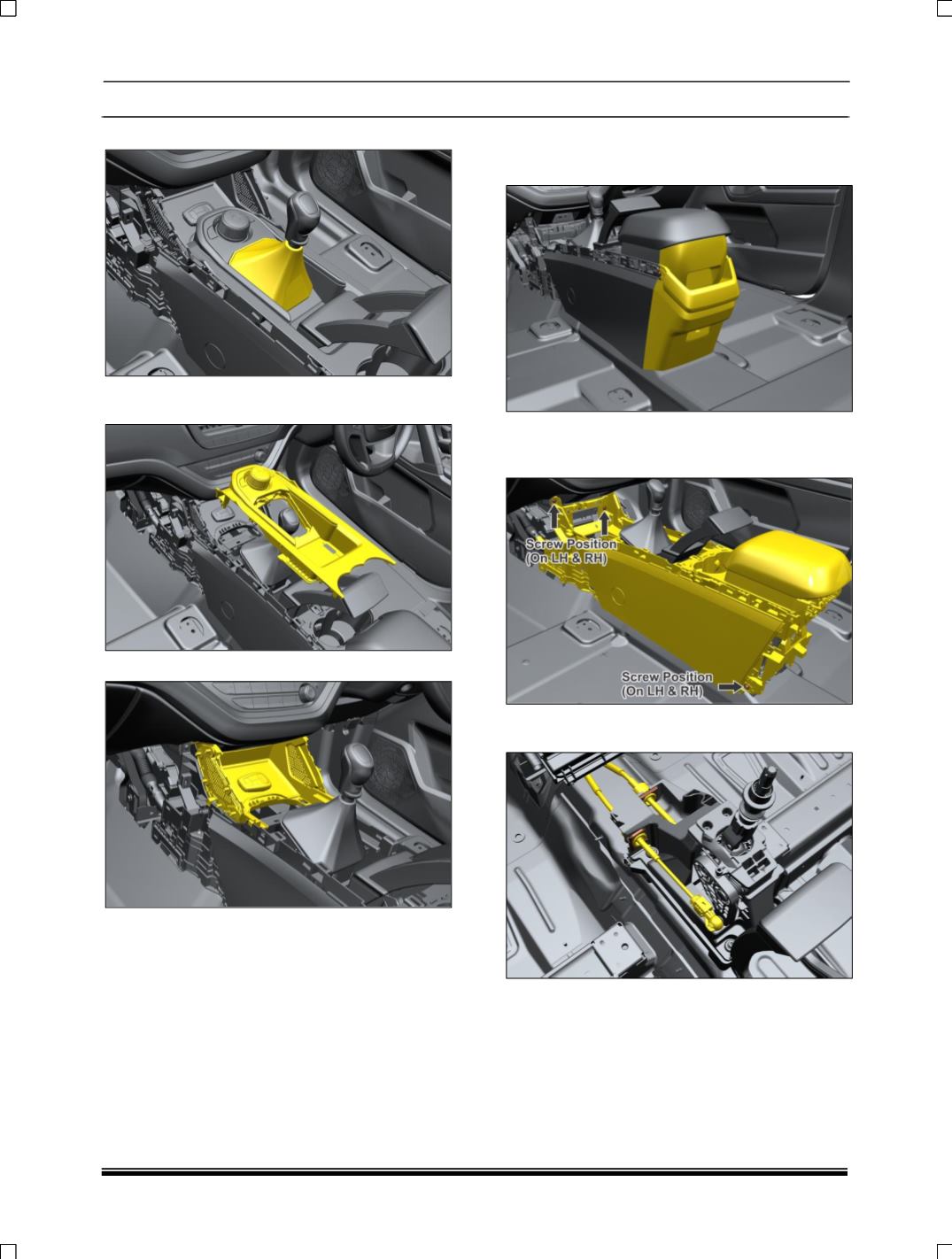

4. Unsnap Bellow Assembly from Mid Trim.
5. Unsnap Mid Trim Gear Shifter Bezel Assembly
& pass it through bellow assembly.
6. Remove Console Lower trim Assembly.
7. Remove two screws & six trim clips & take out
Console Rear Storage Assembly with Auxiliary
USB.
8. Remove 4 screws on IP & 2 screws on GS
Bracket of Main console structure Assembly
with PEPS antenna & console wiring harness.
9. Open the clips and release the gear selection
cable.
