ELECTRICAL
290

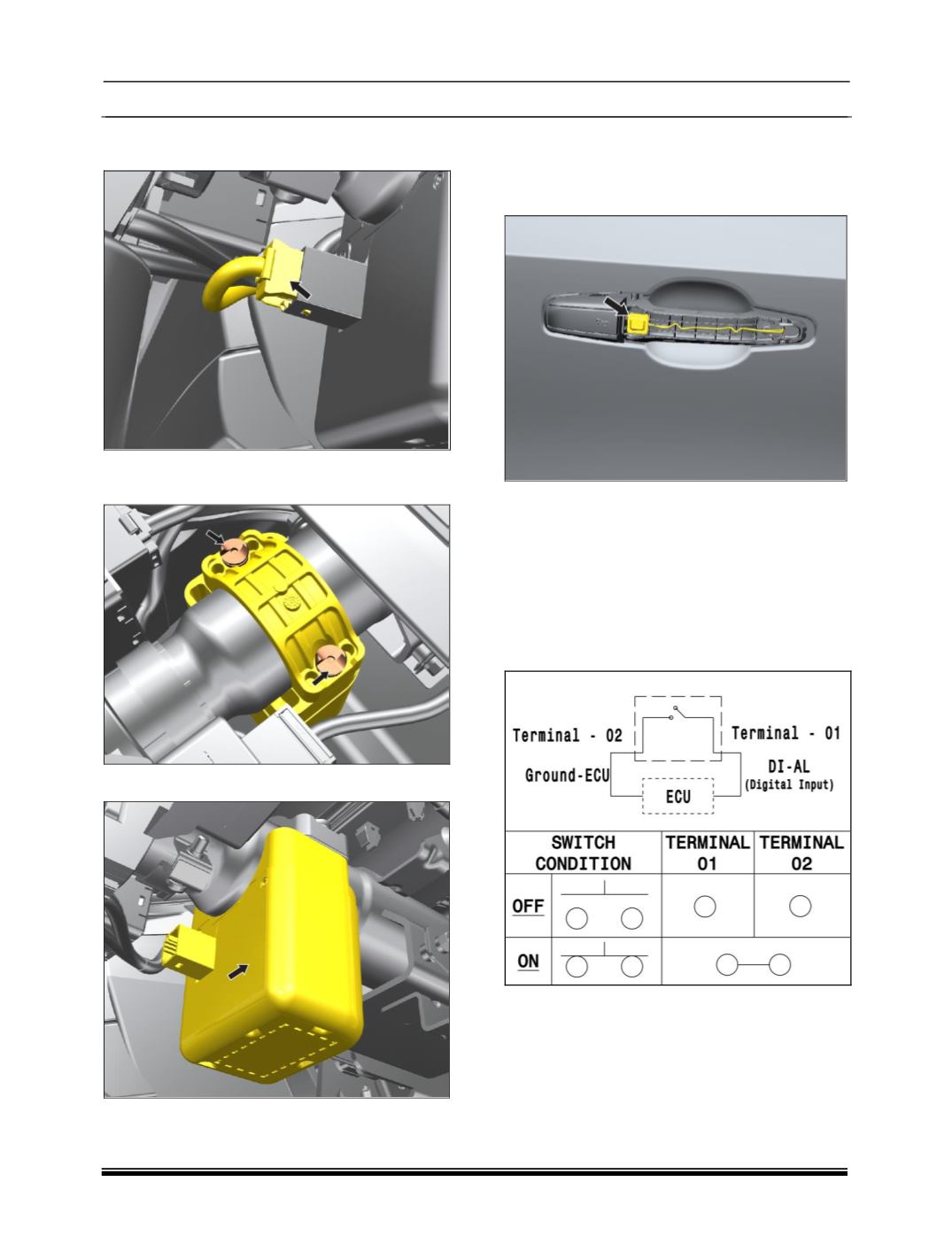

2. Disconnect the electrical connection to the
ESCL.
3. Remove the ESCL mounting bracket’s dome
screw (2 qty.).
4. Take out the ESCL unit.
REFITMENT
Follow the removal process in reverse.
30.4 DOOR AND TAILGATE HANDLE
SWITCHES WITH HARNESS
It is passive device which provides trigger to
PEPS ECU to access the vehicle i.e. lock / unlock
Door handle switches are responsible for
accessing vehicle doors for passive entry.
LOCATION
Three switches are available in vehicle –
1. Driver door switch
2. Co-driver door switch,
CIRCUIT SCHEMATICS
REMOVAL
For removal refer door handle switch and tailgate
switch removal in above sections.
