KRYOTEC ENGINE
65
D. COOLING SYSTEM
ON VEHICLE REPAIRS

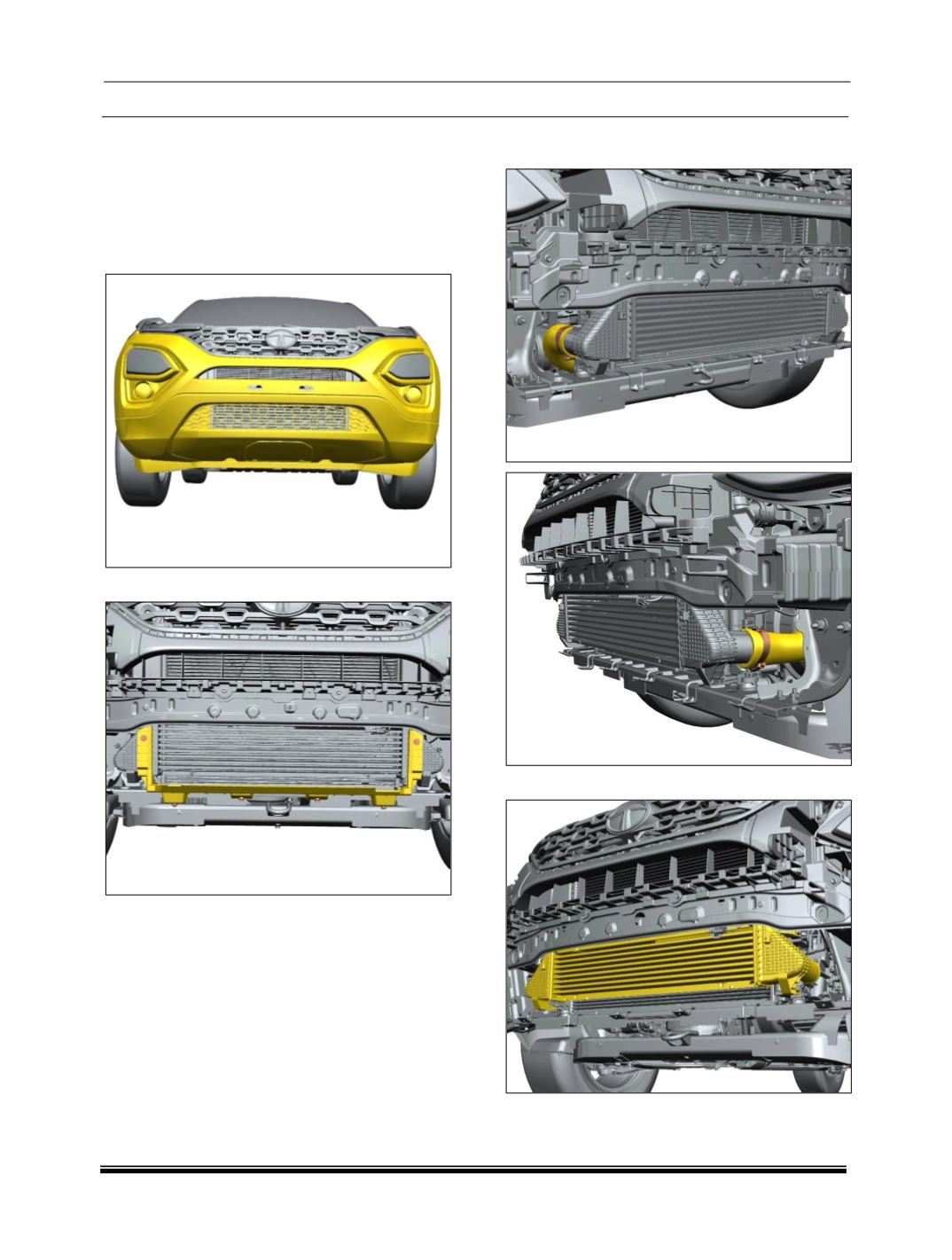

A. INTERCOOLER
REMOVAL
1. Remove the front bumper.
(Refer front bumper
removal procedure from Body section).
2. Remove the bottom seal assembly.
3. Loosen spring clamp and disconnect the
intercooler inlet and outlet hoses.
4. Remove the intercooler assembly.
FITMENT
For fitment follow reverse procedure for removal.
