BODY

60

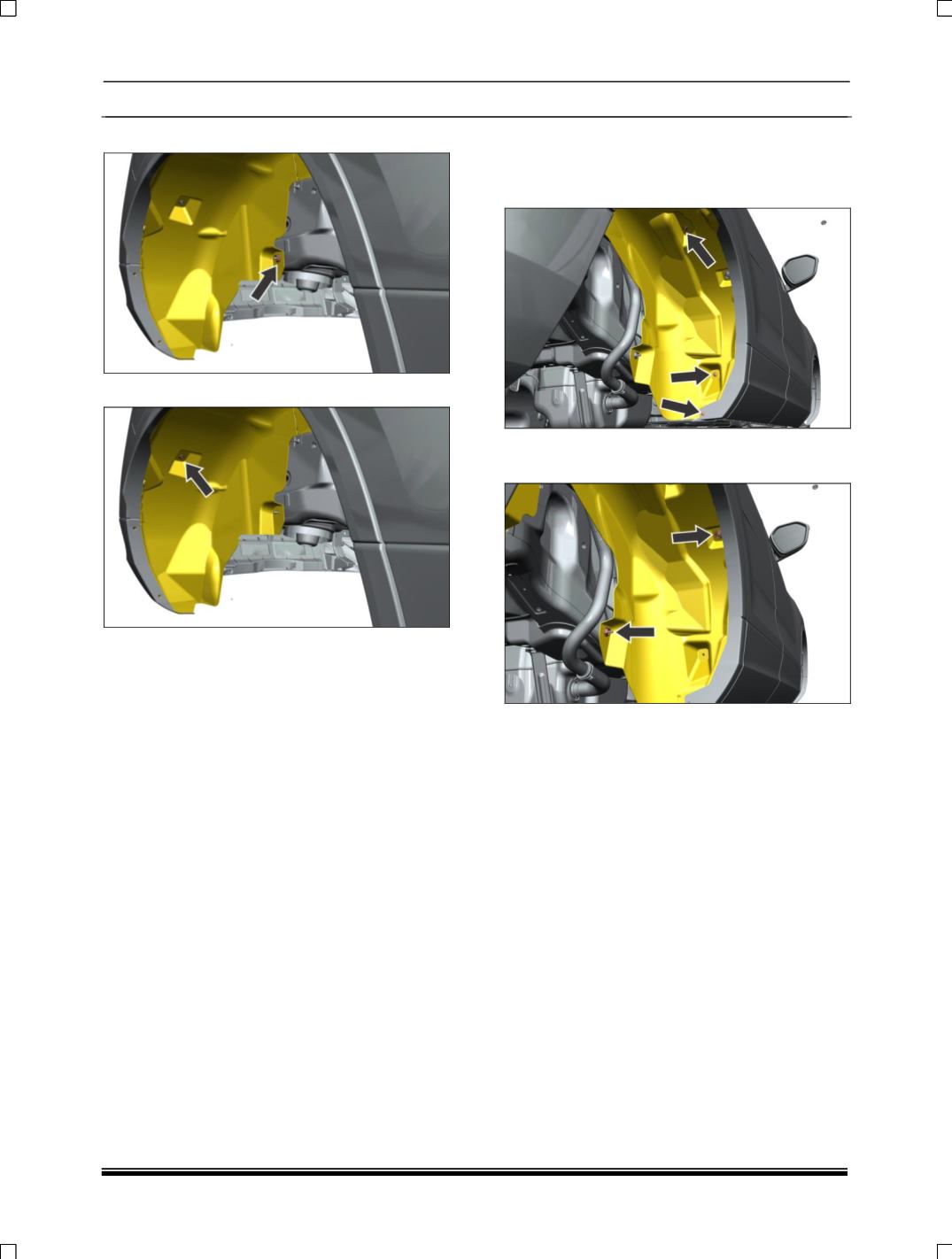

4. Remove Push on Nuts as shown in figure.

5. Remove three Rear Bumper mounting screw.

6. Remove Rear wheel arch front.

FITMENT

For fitment follow reverse procedure of removal.



REAR WHEEL ARCH REAR

REMOVAL

1. Remove Rear Bumper mounting screw.

2. Remove three Push on Nuts located inside

rear wheel arch.

3. Remove Rear wheel arch rear.

FITMENT

For fitment follow reverse procedure of removal.
