BODY
29

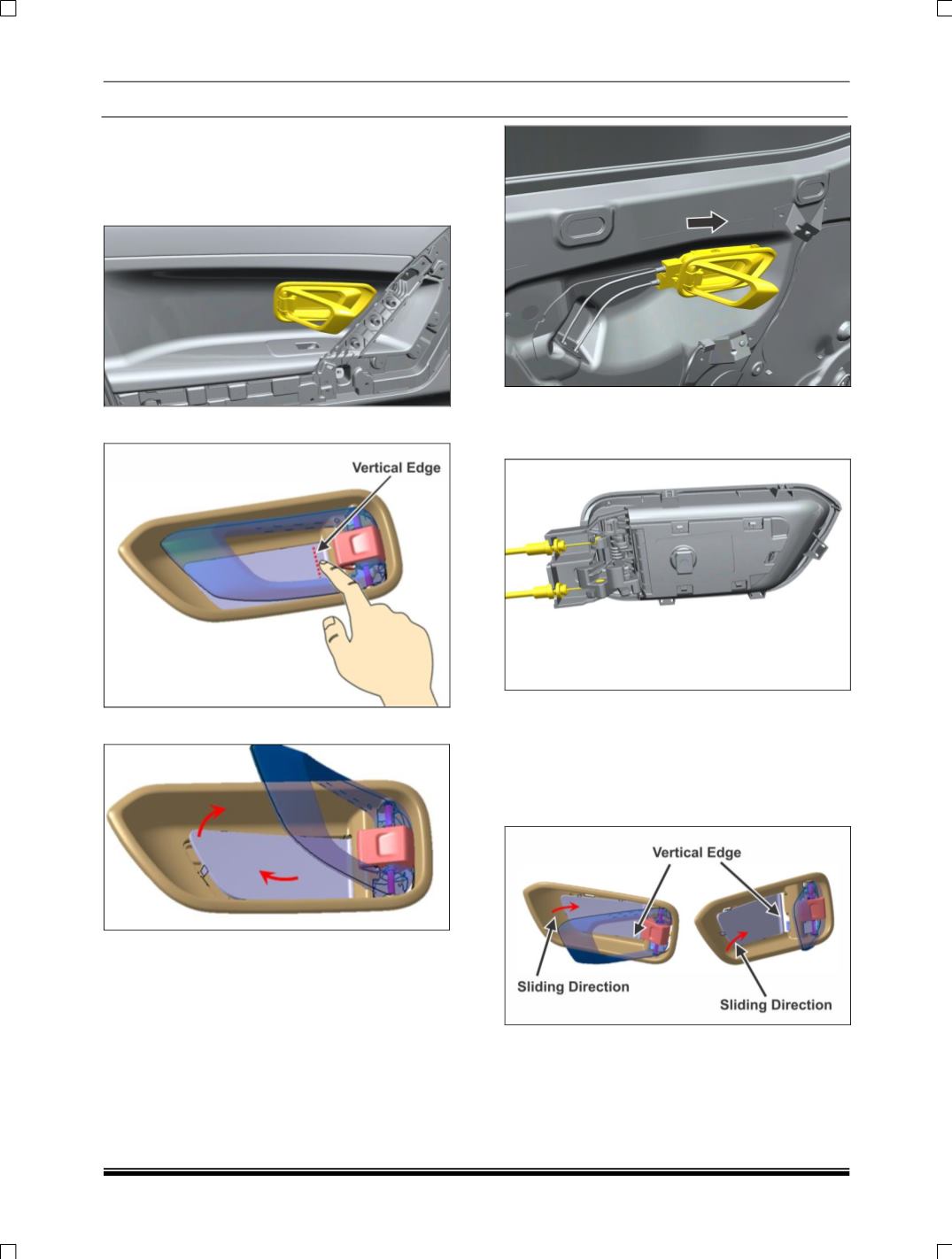

2.11 DOOR INNER LOCK HANDLE
REMOVAL
1. Remove the door trim.
(For procedure refer
door trim removal process.)
2. Press near the vertical edge of screw cap.
3. Slide and remove screw- cap from rear edge.
4. Loosen and remove the mounting screw of
inner handle.
5. Remove one snap and two hooks located
behind the front door inner handle lever.
6. Slide the Housing in horizontal / X direction
towards vehicle front and remove the lever
with Housing assembly from Door Inner panel.
Disconnect the cable from inner lock handle
connecting inner handle to latch assembly power
front.
7. Remove door inner lock handle.
FITMENT
For fitment follow the reverse procedure of
removal.
1. Insert screw cap to tuck in the vertical edge.
