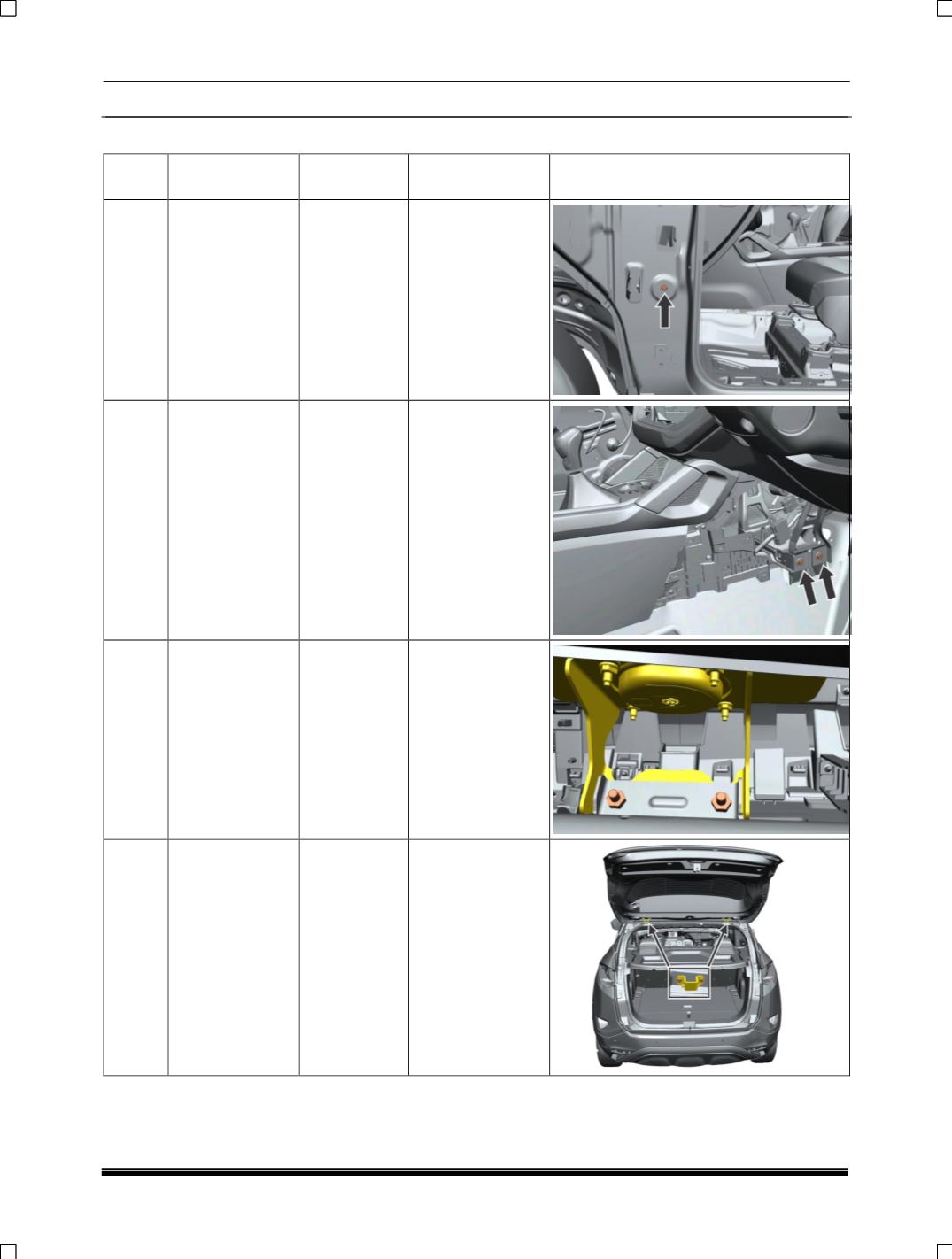

1.2 TIGHTENING TORQUES
SR.
NO
DESCRIPTION FASTENER
TIGHTENING
TORQUE(Kg-m)
LOCATION
1
Assembly cross
-car
beam
mounting bolts
RH side / LH
side
M8 X 200
2.45 ± 10%
2
Bracket cross
car beam and
Tunnel
M8 X 25
2.25 ± 10%
3
Assembly
air
bag
bracket
fitted on cross
car
beam
mounting bolt
M6 X 16K
8 ± 1 Nm
4
Assembly hinge
tail
gate
mounting
M6 X 12
