6. CONTROL PANEL
FATC is an electronic control unit known as the control panel having a built in algorithm to maintain the climate
control system in the vehicle. It is capable of controlling the temperature, FAN speed, air-distribution settings in
the passenger compartment and with the Auto button, the user can select all the above settings to be controlled
automatically by the climate control algorithm. The layout of the knobs and pushbuttons on the control panel are
as below.

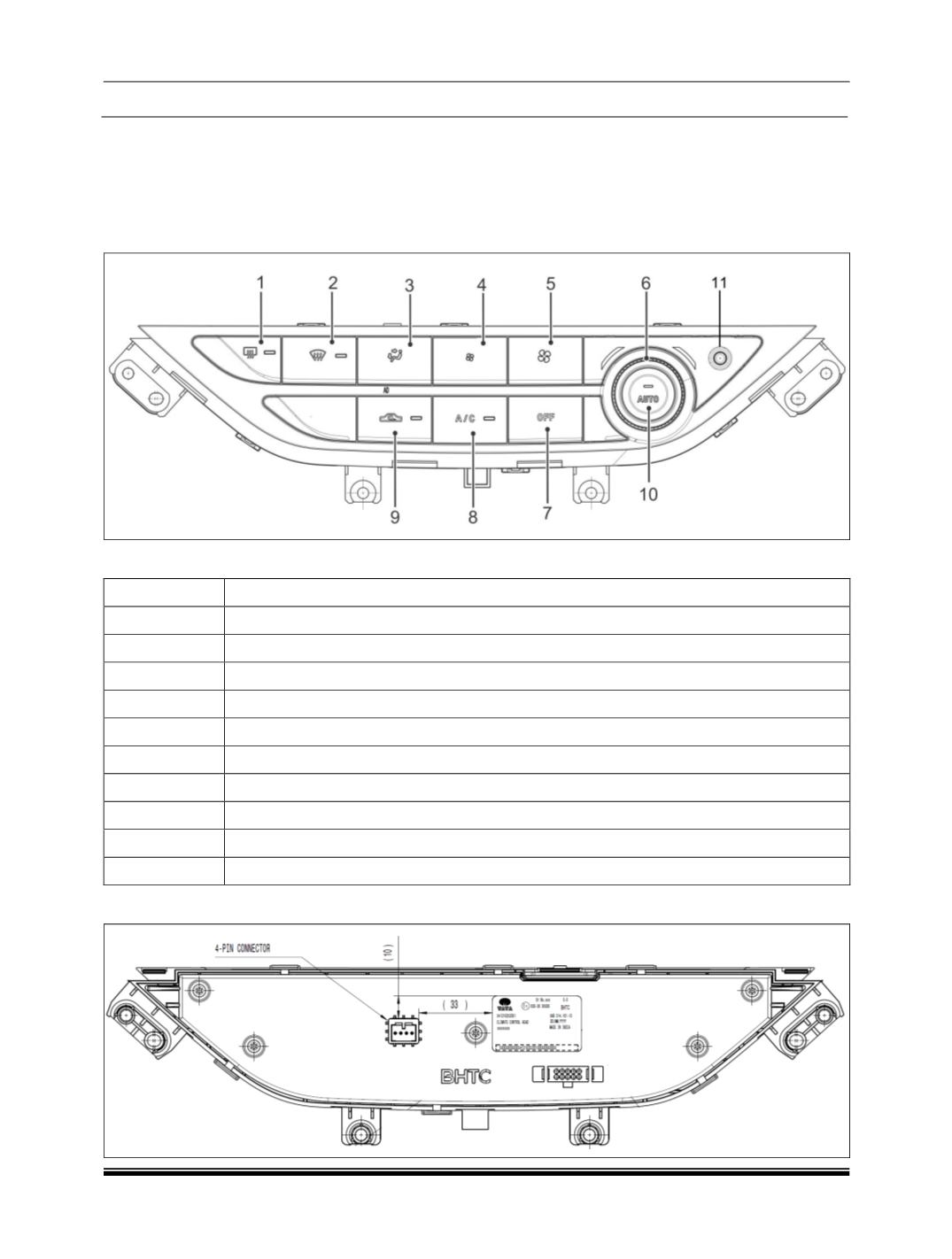

FATC CONTROLS
1.
REAR DEFOGGER
2.
FRONT DEFOGGER
3.
RECIRCULATION
4.
BLOWER SPEED CONTROL DOWN BUTTON
5.
BLOWER SPEED CONTROL UP BUTTON
6.
TEMPRETURE SELECTION
7.
OFF
8.
A/C
9.
MODE
10.
AUTO
11.
INCAR SENSOR
CONNECTOR DETAILS
